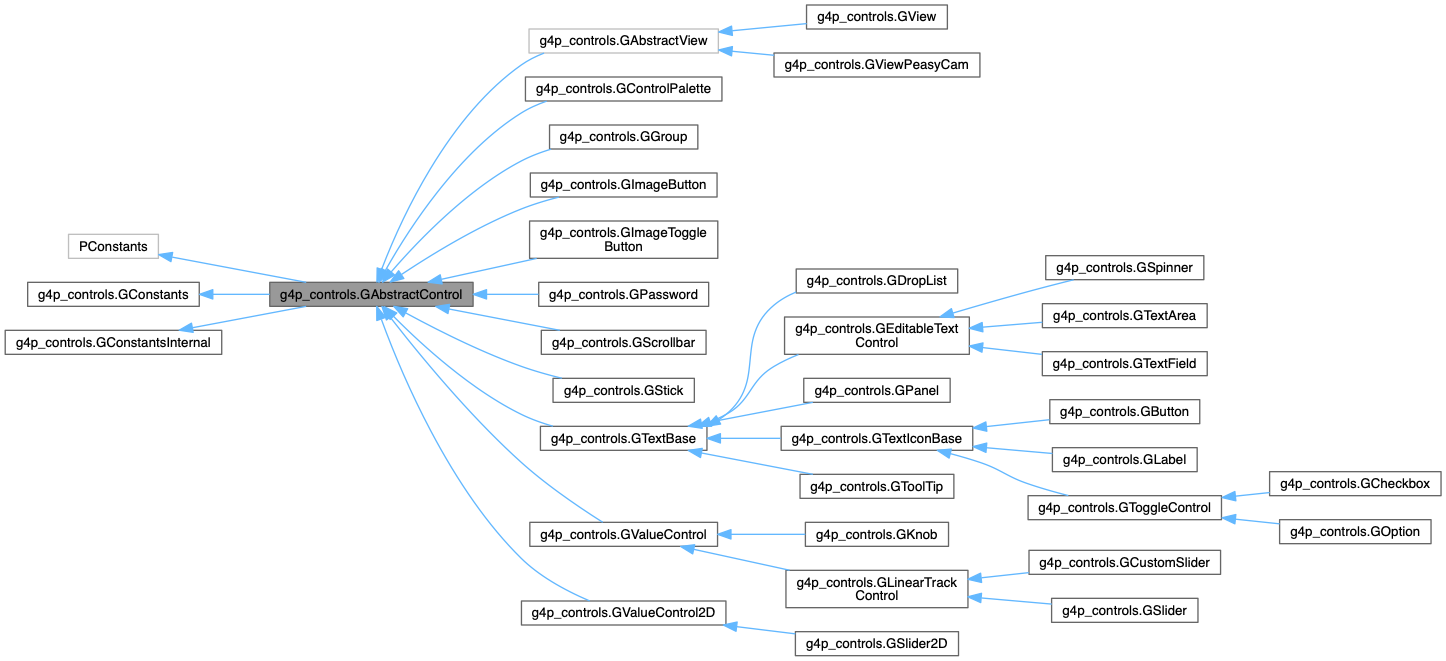

Inheritance diagram for g4p_controls.GAbstractControl:

[legend]

Classes
class	Z_Order

Public Member Functions
void	addControl (GAbstractControl c)

void	addControl (GAbstractControl c, float x, float y)

void	addControl (GAbstractControl c, float x, float y, float angle)

void	addControls (GAbstractControl... controls)

void	addEventHandler (Object obj, String methodName)

void	dispose ()

void	draw ()

void	forceBufferUpdate ()

	GAbstractControl (PApplet theApplet)

	GAbstractControl (PApplet theApplet, float p0, float p1)

	GAbstractControl (PApplet theApplet, float p0, float p1, float p2, float p3)

int	getAlpha ()

int	getCursorOver ()

float	getCX ()

float	getCY ()

float	getHeight ()

int	getLocalColorScheme ()

PApplet	getPApplet ()

GAbstractControl	getParent ()

float	getRotation ()

PGraphics	getSnapshot ()

GToolTip	getTip ()

float	getWidth ()

float	getX ()

float	getY ()

boolean	hasFocus ()

boolean	isDragging ()

boolean	isEnabled ()

boolean	isOpaque ()

boolean	isVisible ()

void	keyEvent (KeyEvent e)

void	mouseEvent (MouseEvent event)

void	moveTo (float px, float py)

void	moveTo (float px, float py, GControlMode mode)

void	post ()

void	pre ()

void	removeTip ()

boolean	saveSnapshot ()

boolean	saveSnapshot (String filename)

void	setAlpha (int alpha)

void	setAlpha (int alpha, boolean includeChildren)

void	setCursorOver (int cursorOver)

void	setEnabled (boolean enable)

void	setFocus (boolean focus)

void	setLocalColor (int colorNo, int color)

void	setLocalColorScheme (int cs)

void	setLocalColorScheme (int cs, boolean includeChildren)

void	setOpaque (boolean opaque)

void	setRotation (float angle)

void	setRotation (float angle, GControlMode mode)

void	setTip (GToolTip tt, float offset, float angle)

void	setTip (GToolTip tt, GAlign ax, GAlign ay, float gap)

void	setTip (String text, float offset, float angle)

void	setTip (String text, GAlign ax, GAlign ay, float gap)

void	setTipDisplayTime (long msecs)

void	setTipEnabled (boolean enable)

void	setTipHorz (boolean level)

void	setTipPos (float radius, float ang)

void	setTipPos (GAlign ax, GAlign ay, float gap)

void	setTipText (String text)

void	setVisible (boolean visible)

String	toString ()

Public Attributes
String	tag = ""

int	tagNo

Public Attributes inherited from g4p_controls.GConstants
int	ALPHA_BLOCK = 128

int	ALPHA_PICK = 48

TextAttribute	BACKGROUND = TextAttribute.BACKGROUND

int	BLUE_SCHEME = 6

int	BOLD = Font.BOLD

int	CANCEL = JOptionPane.CANCEL_OPTION

int	CLOSE_WINDOW = 0x00000f02

int	CLOSED = JOptionPane.CLOSED_OPTION

int	CTRL_ANGULAR = 0x00000501

int	CTRL_HORIZONTAL = 0x00000502

int	CTRL_VERTICAL = 0x00000503

int	CYAN_SCHEME = 5

int	DECIMAL = 1

char	END = java.awt.event.KeyEvent.VK_END

int	ERROR_MESSAGE = JOptionPane.ERROR_MESSAGE

int	EXIT_APP = 0x00000f01

int	EXPONENT = 2

TextAttribute	FAMILY = TextAttribute.FAMILY

TextAttribute	FOREGROUND = TextAttribute.FOREGROUND

int	FORWARD = 1

int	GOLD_SCHEME = 7

int	GREEN_SCHEME = 1

int	HIDE_WINDOW = 0x00000f04

char	HOME = java.awt.event.KeyEvent.VK_HOME

int	INFO_MESSAGE = JOptionPane.INFORMATION_MESSAGE

int	INTEGER = 0

int	ITALIC = Font.ITALIC

int	KEEP_OPEN = 0x00000f03

int	NO = JOptionPane.NO_OPTION

int	OK = JOptionPane.OK_OPTION

int	OK_CANCEL = JOptionPane.OK_CANCEL_OPTION

int	ORANGE_SCHEME = 4

int	ORIENT_LEFT = -1

int	ORIENT_RIGHT = 1

int	ORIENT_TRACK = 0

int	PLAIN = Font.PLAIN

int	PLAIN_MESSAGE = JOptionPane.PLAIN_MESSAGE

TextAttribute	POSTURE = TextAttribute.POSTURE

Float	POSTURE_OBLIQUE = new Float(0.20f)

Float	POSTURE_REGULAR = new Float(0.0f)

int	PURPLE_SCHEME = 3

int	QUERY_MESSAGE = JOptionPane.QUESTION_MESSAGE

int	RED_SCHEME = 0

int	REVERSE = -1

int	SCHEME_10 = 10

int	SCHEME_11 = 11

int	SCHEME_12 = 12

int	SCHEME_13 = 13

int	SCHEME_14 = 14

int	SCHEME_15 = 15

int	SCHEME_8 = 8

int	SCHEME_9 = 9

int	SCROLLBARS_AUTOHIDE = 0x1000

int	SCROLLBARS_BOTH = 0x0003

int	SCROLLBARS_HORIZONTAL_ONLY = 0x0002

int	SCROLLBARS_NONE = 0x0000

int	SCROLLBARS_VERTICAL_ONLY = 0x0001

TextAttribute	SIZE = TextAttribute.SIZE

TextAttribute	STRIKETHROUGH = TextAttribute.STRIKETHROUGH

Boolean	STRIKETHROUGH_OFF = new Boolean(false)

Boolean	STRIKETHROUGH_ON = new Boolean(true)

TextAttribute	SUPERSCRIPT = TextAttribute.SUPERSCRIPT

Integer	SUPERSCRIPT_OFF = new Integer(0)

Integer	SUPERSCRIPT_SUB = new Integer(-1)

Integer	SUPERSCRIPT_SUPER = new Integer(1)

int	UNDEFINED = Integer.MAX_VALUE

TextAttribute	UNDERLINE = TextAttribute.UNDERLINE

int	UNDERLINE_OFF = Integer.valueOf(-1)

int	UNDERLINE_ON = TextAttribute.UNDERLINE_ON

int	USER_COL_SCHEME = 0x00010102

int	WARN_MESSAGE = JOptionPane.WARNING_MESSAGE

TextAttribute	WEIGHT = TextAttribute.WEIGHT

Float	WEIGHT_BOLD = new Float(2.0f)

Float	WEIGHT_DEMIBOLD = new Float(1.75f)

Float	WEIGHT_DEMILIGHT = new Float(0.875f)

Float	WEIGHT_EXTRA_LIGHT = new Float(0.5f)

Float	WEIGHT_EXTRABOLD = new Float(2.5f)

Float	WEIGHT_HEAVY = new Float(2.25f)

Float	WEIGHT_LIGHT = new Float(0.75f)

Float	WEIGHT_MEDIUM = new Float(1.5f)

Float	WEIGHT_REGULAR = new Float(1.0f)

Float	WEIGHT_SEMIBOLD = new Float(1.25f)

Float	WEIGHT_ULTRABOLD = new Float(2.75f)

TextAttribute	WIDTH = TextAttribute.WIDTH

Float	WIDTH_CONDENSED = new Float(0.75f)

Float	WIDTH_EXTENDED = new Float(1.5f)

Float	WIDTH_REGULAR = new Float(1.0f)

Float	WIDTH_SEMI_CONDENSED = new Float(0.875f)

Float	WIDTH_SEMI_EXTENDED = new Float(1.25f)

int	X4 = 1

int	X8 = 2

int	YELLOW_SCHEME = 2

int	YES = JOptionPane.YES_OPTION

int	YES_NO = JOptionPane.YES_NO_OPTION

int	YES_NO_CANCEL = JOptionPane.YES_NO_CANCEL_OPTION

Protected Member Functions
void	addControlImpl (GAbstractControl c, float x, float y, float angle)

void	addToParent (GAbstractControl p)

void	calcTransformedOrigin (float px, float py)

boolean	controlSupportsToolTips ()

void	createEventHandler (Object handlerObj, String methodName, Class[] param_classes, String[] param_names)

void	drawChildren ()

void	fireEvent (Object... objects)

int	focusObjectZ ()

PGraphics	getBuffer ()

int	getCurrHotSpot ()

AffineTransform	getTransform (AffineTransform aff)

void	hideTip ()

boolean	isAvailable ()

boolean	isDisplayable (int ascii)

boolean	isSuitableForGroupControl (GAbstractControl control)

void	loseFocus (GAbstractControl grabber)

void	makeBuffer ()

void	manageToolTip ()

void	resize (int w, int h)

void	resize (int w, int h, GControlMode mode)

void	setAvailable (boolean avail)

void	setZ (int parentZ)

void	showTip ()

void	takeFocus ()

void	updateBuffer ()

int	whichHotSpot (float px, float py)

Protected Attributes
boolean	allowChildren = true

boolean	allowToolTips = true

int	alphaLevel = G4P.globalAlpha

boolean	available = true

PGraphicsJava2D	buffer = null

boolean	bufferInvalid = true

LinkedList< GAbstractControl >	children = null

int	currSpot = -1

int	cursorOver = HAND

float	cx

float	cy

boolean	dragging = false

boolean	enabled = true

Method	eventHandlerMethod = null

String	eventHandlerMethodName

Object	eventHandlerObject = null

float	halfHeight

float	halfWidth

float	height

HotSpot[]	hotspots = null

int	lastSpot = -1

int	localColorScheme = G4P.globalColorScheme

boolean	opaque = false

float	ox

float	oy

Color[]	palette = null

GAbstractControl	parent = null

int	registeredMethods = 0

float	rotAngle

double[]	temp = new double[2]

GToolTip	tip = null

boolean	visible = true

float	width

PApplet	winApp

float	x

float	y

int	z = Z_STICKY

Static Protected Attributes
static GAbstractControl	controlToTakeFocus = null

static GAbstractControl	cursorIsOver

static float	epsilon = 0.001f

static GAbstractControl	focusIsWith = null

Detailed Description

Abstract base class for all GUI controls.

Author: Peter Lager

Constructor & Destructor Documentation

◆ GAbstractControl() [1/3]

g4p_controls.GAbstractControl.GAbstractControl ( PApplet theApplet )

Base constructor for ALL control ctors that do not have a visible UI but require access to a PApplet object.
As of V3.5 the only class using this constructor is GGroup

Parameters

theApplet the main sketch or GWindow control for this control

◆ GAbstractControl() [2/3]

g4p_controls.GAbstractControl.GAbstractControl	(	PApplet	theApplet,
		float	p0,
		float	p1
	)

Base constructor for ALL control ctors that have a visible UI but whose width and height are determined elsewhere e.g. the size of an image. It will set the position of the control based on controlMode.

Parameters

theApplet	the main sketch or GWindow control for this control
p0	x position based on control mode
p1	y position based on control mode

◆ GAbstractControl() [3/3]

g4p_controls.GAbstractControl.GAbstractControl	(	PApplet	theApplet,
		float	p0,
		float	p1,
		float	p2,
		float	p3
	)

Base constructor for ALL control ctors that have a visible UI. It will set the position and size of the control based on controlMode.

Parameters

theApplet	the main sketch or GWindow control for this control
p0	x position based on control mode
p1	y position based on control mode
p2	x position or width based on control mode
p3	y position or height based on control mode

Member Function Documentation

◆ addControl() [1/3]

void g4p_controls.GAbstractControl.addControl ( GAbstractControl c )

Add a control at the position and rotation specified in the control.

Parameters

c	the control to add

Reimplemented in g4p_controls.GControlPalette, and g4p_controls.GGroup.

◆ addControl() [2/3]

void g4p_controls.GAbstractControl.addControl	(	GAbstractControl	c,
		float	x,
		float	y
	)

Add a control at the given position with zero rotation angle.

Parameters

c	the control to add.
x	the leftmost or centre position depending on controlMode
y	the topmost or centre position depending on controlMode

Reimplemented in g4p_controls.GControlPalette.

◆ addControl() [3/3]

void g4p_controls.GAbstractControl.addControl	(	GAbstractControl	c,
		float	x,
		float	y,
		float	angle
	)

This will set the rotation of the control to angle overwriting any previous rotation set. Then it calculates the centre position so that the original top left corner of the control will be the position indicated by x,y with respect to the top left corner of parent.

The added control will have its position calculated relative to the centre of the parent control.

All overloaded methods call this one.

Parameters

c	the control to add.
x	the leftmost or centre position depending on controlMode
y	the topmost or centre position depending on controlMode
angle	the rotation angle (replaces any the angle specified in control)

Reimplemented in g4p_controls.GControlPalette, and g4p_controls.GPanel.

◆ addControlImpl()

void g4p_controls.GAbstractControl.addControlImpl	(	GAbstractControl	c,
		float	x,
		float	y,
		float	angle
	)

protected

All addControl(...) methods must call this one.

Checks to see if this control allows children and creates the child list if needed.

Parameters

c	the control to add.
x	the leftmost or centre position depending on controlMode
y	the topmost or centre position depending on controlMode
angle	the rotation angle (replaces any the angle specified in control)

◆ addControls()

void g4p_controls.GAbstractControl.addControls ( GAbstractControl... controls )

Add several control at the position and rotation specified in each control.

Parameters

controls comma separated list of controls

Reimplemented in g4p_controls.GControlPalette, and g4p_controls.GGroup.

◆ addEventHandler()

void g4p_controls.GAbstractControl.addEventHandler	(	Object	obj,
		String	methodName
	)

Attempt to create the default event handler for the control class. The default event handler is a method that returns void and has a single parameter of the same type as the control class generating the event and a method name specific for that class.

Parameters

obj	the object to handle the event
methodName	the method to execute in the object handler class

◆ addToParent()

void g4p_controls.GAbstractControl.addToParent ( GAbstractControl p )

protected

Changes that need to be made to child when added. Override where needed e.g. GPanel

Parameters

p	the parent

Reimplemented in g4p_controls.GPanel.

◆ calcTransformedOrigin()

void g4p_controls.GAbstractControl.calcTransformedOrigin	(	float	px,
		float	py
	)

protected

This method takes a position px, py and calculates the equivalent position [ox,oy] as if no transformations have taken place and the origin is the top-left corner of the control.

Parameters

px
py

◆ controlSupportsToolTips()

boolean g4p_controls.GAbstractControl.controlSupportsToolTips ( )

protected

Return true if this class / control supports tool tips otherwise false and output error message.

◆ createEventHandler()

void g4p_controls.GAbstractControl.createEventHandler	(	Object	handlerObj,
		String	methodName,
		Class[]	param_classes,
		String[]	param_names
	)

protected

Attempt to create the default event handler for the control class. The default event handler is a method that returns void and has a single parameter of the same type as the control class generating the event and a method name specific for that class.

Parameters

handlerObj	the object to handle the event
methodName	the method to execute in the object handler class
param_classes	the parameter classes.
param_names	that names of the parameters (used for error messages only)

◆ dispose()

void g4p_controls.GAbstractControl.dispose ( )

This will remove all references to this control from G4P after the next frame has been rendered.
The user is responsible for nullifying all references to this control in their sketch code.
Once this method is called the control cannot be reused but resources used by the control remain until ALL references to the control are set to null.
For example if you want to dispose of a button called

btnDoThis

then to remove the button use the statements

btnDoThis.dispose();


btnDoThis = null;

Reimplemented in g4p_controls.GEditableTextControl.

◆ draw()

void g4p_controls.GAbstractControl.draw ( )

Reimplemented in g4p_controls.GAbstractView, g4p_controls.GControlPalette, and g4p_controls.GPanel.

◆ drawChildren()

void g4p_controls.GAbstractControl.drawChildren ( )

protected

Introduced in V4.3.9 along with tool tips

◆ fireEvent()

void g4p_controls.GAbstractControl.fireEvent ( Object... objects )

protected

Attempt to fire an event for this control.

The method called must have a single parameter which is the object firing the event. If the method to be called is to have different parameters then it should be overridden in the child class The method

◆ focusObjectZ()

int g4p_controls.GAbstractControl.focusObjectZ ( )

protected

Get the Z order value for the object with focus.
If there is no object with focus or the focus is with a control on another window then return -1 which will allow this control to take focus.

◆ forceBufferUpdate()

void g4p_controls.GAbstractControl.forceBufferUpdate ( )

This is for emergency use only!!!!
In this version of the library a visual controls is drawn to off-screen buffer and then drawn to the screen by copying the buffer. This means that the computationally expensive routines needed to draw the control (especially text controls) are only done when a change has been noted. This means that single changes need not trigger a full redraw to buffer.
It does mean that an error in the library code could result in the buffer not being updated after changes. If this happens then in draw() call this method on the affected control, and report it as an issue here
Thanks

Reimplemented in g4p_controls.GTextBase.

◆ getAlpha()

int g4p_controls.GAbstractControl.getAlpha ( )

Returns the current transparency level
0 = fully transparent
255 = opaque

Returns: alpha level

◆ getCursorOver()

int g4p_controls.GAbstractControl.getCursorOver ( )

Get the shape type when the cursor is over a control

Returns: shape type

◆ getCX()

float g4p_controls.GAbstractControl.getCX ( )

Get the centre x position of the control centre.

Changed 3.4.10

Returns: the x position corresponding to the centre of the control.

◆ getCY()

float g4p_controls.GAbstractControl.getCY ( )

Get the centre y position of the control centre.

Changed 3.4.10

Returns: the y position corresponding to the centre of the control.

◆ getHeight()

float g4p_controls.GAbstractControl.getHeight ( )

Returns: the height

◆ getLocalColorScheme()

int g4p_controls.GAbstractControl.getLocalColorScheme ( )

Get the local color scheme ID number. If it returns a value <0 then it is using a control specific palette.

Returns: local colour scheme ID

◆ getPApplet()

PApplet g4p_controls.GAbstractControl.getPApplet ( )

Returns: the PApplet that manages this control

◆ getParent()

GAbstractControl g4p_controls.GAbstractControl.getParent ( )

Get the parent control. If null then this is a top-level control

Returns: return parent control, or null if top level

◆ getRotation()

float g4p_controls.GAbstractControl.getRotation ( )

Returns: the rotation

◆ getSnapshot()

PGraphics g4p_controls.GAbstractControl.getSnapshot ( )

This method should be used sparingly since it is heavy on resources.

Returns: a PGraphics object showing current state of the control (ignoring rotation)

Reimplemented in g4p_controls.GAbstractView, g4p_controls.GDropList, g4p_controls.GPassword, g4p_controls.GSpinner, g4p_controls.GTextArea, and g4p_controls.GTextField.

◆ getTip()

GToolTip g4p_controls.GAbstractControl.getTip ( )

Gets a reference to the tool tip so the user can access methods not available through its control.

Returns: the tool tip

◆ getTransform()

AffineTransform g4p_controls.GAbstractControl.getTransform ( AffineTransform aff )

protected

Get an affine transformation that is the compound of all transformations including parents

Parameters

aff

◆ getWidth()

float g4p_controls.GAbstractControl.getWidth ( )

Returns: the width

◆ getX()

float g4p_controls.GAbstractControl.getX ( )

Get the top-left x position of the control.

Changed 3.4.10

Returns: top-left corner x position

◆ getY()

float g4p_controls.GAbstractControl.getY ( )

Get the top-left y position of the control.

Changed 3.4.10

Returns: top-left corner y position

◆ hasFocus()

boolean g4p_controls.GAbstractControl.hasFocus ( )

Does this control have focus

Returns: true if this control has focus else false

◆ hideTip()

void g4p_controls.GAbstractControl.hideTip ( )

protected

Hide the tool tip. Called when mouse exits control or display time exceeded.

◆ isAvailable()

boolean g4p_controls.GAbstractControl.isAvailable ( )

protected

Is this control available?

◆ isDisplayable()

boolean g4p_controls.GAbstractControl.isDisplayable ( int ascii )

protected

Support UTF8 encoding

Parameters

ascii UTF8 code

Returns: true if the character can be displayed

◆ isEnabled()

boolean g4p_controls.GAbstractControl.isEnabled ( )

Is this control enabled

Returns: true if the control is enabled

◆ isOpaque()

boolean g4p_controls.GAbstractControl.isOpaque ( )

Find out if the control is opaque

Returns: true if the background is visible

◆ isSuitableForGroupControl()

boolean g4p_controls.GAbstractControl.isSuitableForGroupControl ( GAbstractControl control )

protected

If the control responds to key or mouse input or has a visual representation this it can be part of a group controller.

Parameters

control the G4P control we are interested in

Returns: true if it can be added to a group controller

◆ isVisible()

boolean g4p_controls.GAbstractControl.isVisible ( )

Returns: the control's visibility

◆ loseFocus()

void g4p_controls.GAbstractControl.loseFocus ( GAbstractControl grabber )

protected

For most controls there is nothing to do when they loose focus. Override this method in classes that need to do something when they loose focus eg TextField

Reimplemented in g4p_controls.GDropList, g4p_controls.GEditableTextControl, g4p_controls.GPanel, g4p_controls.GPassword, and g4p_controls.GSpinner.

◆ makeBuffer()

void g4p_controls.GAbstractControl.makeBuffer ( )

protected

Make a 2D off-screen buffer for this control.

◆ manageToolTip()

void g4p_controls.GAbstractControl.manageToolTip ( )

protected

Used internally at runtime to show/hide the tool tip. V4.3.9

◆ mouseEvent()

void g4p_controls.GAbstractControl.mouseEvent ( MouseEvent event )

Reimplemented in g4p_controls.GButton, g4p_controls.GImageButton, g4p_controls.GImageToggleButton, g4p_controls.GPanel, g4p_controls.GTextArea, g4p_controls.GView, and g4p_controls.GViewPeasyCam.

◆ moveTo() [1/2]

void g4p_controls.GAbstractControl.moveTo	(	float	px,
		float	py
	)

Move the control to the given position based on the mode.

The position is not constrained to the screen area.

The current control mode determines whether we move the corner or the center of the control to px,py

Parameters

px	the horizontal position to move to
py	the vertical position to move to

Reimplemented in g4p_controls.GViewPeasyCam.

◆ moveTo() [2/2]

void g4p_controls.GAbstractControl.moveTo	(	float	px,
		float	py,
		GControlMode	mode
	)

Move the control to the given position based on the mode.

Unlike when dragged the position is not constrained to the screen area.

The mode determines whether we move the corner or the center of the control to px,py

Parameters

px	the horizontal position to move to
py	the vertical position to move to
mode	the control mode

Reimplemented in g4p_controls.GViewPeasyCam.

◆ pre()

void g4p_controls.GAbstractControl.pre ( )

Reimplemented in g4p_controls.GValueControl, and g4p_controls.GValueControl2D.

◆ removeTip()

void g4p_controls.GAbstractControl.removeTip ( )

Removes the existing tool tip for this control.

◆ resize() [1/2]

void g4p_controls.GAbstractControl.resize	(	int	w,
		int	h
	)

protected

Used internally to enforce minimum size constraints using current global control mode.

This updates x, y, cx, cy, width and height so the original and resized control have the same centre position.

Parameters

w
h

◆ resize() [2/2]

void g4p_controls.GAbstractControl.resize	(	int	w,
		int	h,
		GControlMode	mode
	)

protected

Used internally to enforce minimum size constraints using user defined control mode.

This updates x, y, cx, cy, width and height so the original and resized control have the same centre position.

Parameters

w	the new width
h	the new height

◆ saveSnapshot() [1/2]

boolean g4p_controls.GAbstractControl.saveSnapshot ( )

Save a snapshot of the control using class name and sketch runtime as the filename

Returns: true if the snapshot was saved else return false

◆ saveSnapshot() [2/2]

boolean g4p_controls.GAbstractControl.saveSnapshot ( String filename )

Save a snapshot of the control using the specified filename.

Parameters

filename the name of the file to save for the image

Returns: true if the snapshot was saved else return false

Reimplemented in g4p_controls.GAbstractView.

◆ setAlpha() [1/2]

void g4p_controls.GAbstractControl.setAlpha ( int alpha )

Set the transparency of the control and make it unavailable to mouse and keyboard events if below the threshold. Child controls are ignored?

Parameters

alpha value in the range 0 (transparent) to 255 (opaque)

Reimplemented in g4p_controls.GGroup, and g4p_controls.GViewPeasyCam.

◆ setAlpha() [2/2]

void g4p_controls.GAbstractControl.setAlpha	(	int	alpha,
		boolean	includeChildren
	)

Set the transparency of the control and make it unavailable to mouse and keyboard events if below the threshold. Child controls are ignored?
If required include the children and their children.

Parameters

alpha	value in the range 0 (transparent) to 255 (opaque)
includeChildren	if do do the same for all descendants

Reimplemented in g4p_controls.GGroup, and g4p_controls.GViewPeasyCam.

◆ setAvailable()

void g4p_controls.GAbstractControl.setAvailable ( boolean avail )

protected

The availability flag is used by the library code to determine whether a control should be considered for drawing and mouse/key input.
It permits an internal control that does not affect the visible and enabled state of the control, which are set by the programmer.

If a control and its children are made unavailable it will still be drawn but it not respond to user input.

Parameters

avail

◆ setCursorOver()

void g4p_controls.GAbstractControl.setCursorOver ( int cursorOver )

Set the shape type to use when the cursor is over a control

Parameters

cursorOver the shape type to use

◆ setEnabled()

void g4p_controls.GAbstractControl.setEnabled ( boolean enable )

Enable or disable the ability of the control to generate mouse events.
GTextField - it also controls key press events
GPanel - controls whether the panel can be moved/collapsed/expanded

Parameters

enable true to enable else false

Reimplemented in g4p_controls.GButton, g4p_controls.GGroup, g4p_controls.GImageButton, g4p_controls.GSlider, and g4p_controls.GViewPeasyCam.

◆ setFocus()

void g4p_controls.GAbstractControl.setFocus ( boolean focus )

Determines whether this control is to have focus or not

Parameters

focus true if the control is to have focus else false.

Reimplemented in g4p_controls.GEditableTextControl, and g4p_controls.GPassword.

◆ setLocalColor()

void g4p_controls.GAbstractControl.setLocalColor	(	int	colorNo,
		int	color
	)

Change a specific colour within the scheme.
Most controls used a shared colour palette but calling this method will create a new palette specific for this control.

Parameters

colorNo	the colour index value (0-15 inlc)
color	ARGB color value

◆ setLocalColorScheme() [1/2]

void g4p_controls.GAbstractControl.setLocalColorScheme ( int cs )

Set the local colour scheme for this control. Children are ignored.

Parameters

cs	the colour scheme to use (0-15 incl.)

Reimplemented in g4p_controls.GGroup, g4p_controls.GDropList, g4p_controls.GEditableTextControl, and g4p_controls.GPassword.

◆ setLocalColorScheme() [2/2]

void g4p_controls.GAbstractControl.setLocalColorScheme	(	int	cs,
		boolean	includeChildren
	)

Set the local colour scheme for this control. If required include the children and their children.

Parameters

cs	the colour scheme to use (0-15 incl.)
includeChildren	if do do the same for all descendants

◆ setOpaque()

void g4p_controls.GAbstractControl.setOpaque ( boolean opaque )

Determines whether to show the back colour or not. Only applies to some controls

Parameters

opaque true = opaque, flase = transparent

Reimplemented in g4p_controls.GPanel.

◆ setRotation() [1/2]

void g4p_controls.GAbstractControl.setRotation ( float angle )

Set the rotation to apply when displaying this control. The center of rotation is determined by the control_mode attribute.

Parameters

angle clockwise angle in radians

Reimplemented in g4p_controls.GViewPeasyCam.

◆ setRotation() [2/2]

void g4p_controls.GAbstractControl.setRotation	(	float	angle,
		GControlMode	mode
	)

Set the rotation to apply when displaying this control. The center of rotation is determined by the mode parameter parameter.

Parameters

angle	clockwise angle in radians
mode	PApplet.CORNER / CORNERS / CENTER

Reimplemented in g4p_controls.GToolTip, and g4p_controls.GViewPeasyCam.

◆ setTip() [1/4]

void g4p_controls.GAbstractControl.setTip	(	GToolTip	tt,
		float	offset,
		float	angle
	)

Only use this method if you are creating custom tool tips.

Replaces the current tool tip (if any) with a new tool tip for this control. Do not use this method to simply change the tip text, in that situation use the setToolTipText(String) method.

Parameters

tt	the custom tool tip
offset	distance between control and tool tip centres
angle	the angle (radians) made by the line joining the control centre the tool tip centre

◆ setTip() [2/4]

void g4p_controls.GAbstractControl.setTip	(	GToolTip	tt,
		GAlign	ax,
		GAlign	ay,
		float	gap
	)

Only use this method if you are creating custom tool tips.

Replaces the current tool tip (if any) with a new tool tip for this control. Do not use this method to simply change the tip text, in that situation use the setTipText(String) method.

Parameters

tt	the custom tool tip
ax	horizontal alignment with its control (LEFT, CENTER, RIGHT)
ay	vertical position relative with its control (NORTH, SOUTH)
gap	the gap between the tool tip and its control in pixels

◆ setTip() [3/4]

void g4p_controls.GAbstractControl.setTip	(	String	text,
		float	offset,
		float	angle
	)

Replaces the current tool tip (if any) with a new tool tip for this control. Do not use this method to simply change the tip text, in that situation use the setToolTipText(String) method.

Parameters

text	the text to display
offset	distance between control and tool tip centres
angle	the angle (radians) made by the line joining the control centre the tool tip centre

◆ setTip() [4/4]

void g4p_controls.GAbstractControl.setTip	(	String	text,
		GAlign	ax,
		GAlign	ay,
		float	gap
	)

Replaces the current tool tip (if any) with a new tool tip for this control. Do not use this method to simply change the tip text, in that situation use the setTipText(String) method.

Parameters

text	the text to display
ax	horizontal alignment with its control (LEFT, CENTER, RIGHT)
ay	vertical position relative with its control (NORTH, SOUTH)
gap	the gap between the tool tip and its control in pixels

◆ setTipDisplayTime()

void g4p_controls.GAbstractControl.setTipDisplayTime ( long msecs )

Set the maximum length of time to show the tool tip

Parameters

msecs

◆ setTipEnabled()

void g4p_controls.GAbstractControl.setTipEnabled ( boolean enable )

If this control has a tool tip set its enabled state.

Parameters

enable true to show tips, false to hide tips

◆ setTipHorz()

void g4p_controls.GAbstractControl.setTipHorz ( boolean level )

By default the tool tip is always aligned along the X axis. To have the tool tip rotate with the control pass false.

Parameters

level false to rotate with the control else false to keep horizontal

◆ setTipPos() [1/2]

void g4p_controls.GAbstractControl.setTipPos	(	float	radius,
		float	ang
	)

Implementation method to set a tool tip based on polar position (offset and angle)

◆ setTipPos() [2/2]

void g4p_controls.GAbstractControl.setTipPos	(	GAlign	ax,
		GAlign	ay,
		float	gap
	)

Implementation method to set a tool tip based on alignment with control

◆ setTipText()

void g4p_controls.GAbstractControl.setTipText ( String text )

If this control has a tool tip change the text it displays.

Parameters

text	the text to display

◆ setVisible()

void g4p_controls.GAbstractControl.setVisible ( boolean visible )

Parameters

visible the visibility to set

Reimplemented in g4p_controls.GGroup.

◆ setZ()

void g4p_controls.GAbstractControl.setZ ( int parentZ )

protected

Recursive function to set the priority of a control. This is used to determine who gets focus when controls overlap on the screen e.g. when a droplist expands it might cover a button.
It is used where controls have childen e.g. GDropList and GPaneln It is used when a child control is added.

Parameters

control
parentZ

◆ showTip()

void g4p_controls.GAbstractControl.showTip ( )

protected

Show the tool tip. Called when mouse enters control.

◆ takeFocus()

void g4p_controls.GAbstractControl.takeFocus ( )

protected

Give the focus to this control but only after allowing the current control with focus to release it gracefully.
Always cancel the keyFocusIsWith irrespective of the control type. If the control needs to retain keyFocus then override this method in that class e.g. GCombo

Reimplemented in g4p_controls.GEditableTextControl, and g4p_controls.GPassword.

◆ updateBuffer()

void g4p_controls.GAbstractControl.updateBuffer ( )

protected

Reimplemented in g4p_controls.GPassword, g4p_controls.GSpinner, g4p_controls.GTextArea, and g4p_controls.GTextField.

◆ whichHotSpot()

int g4p_controls.GAbstractControl.whichHotSpot	(	float	px,
		float	py
	)

protected

Stop when we are over a hotspot.
Hotspots should be listed in order of importance.

Parameters

px
py

Returns: the index for the first hotspot containing [px,py] else return -1

Member Data Documentation

◆ cx

float g4p_controls.GAbstractControl.cx

protected

The centre of the control

◆ halfWidth

float g4p_controls.GAbstractControl.halfWidth

protected

Half sizes reduces programming complexity later

◆ height

float g4p_controls.GAbstractControl.height

protected

Reimplemented in g4p_controls.GAbstractView.

◆ opaque

boolean g4p_controls.GAbstractControl.opaque = false

protected

Whether to show background or not

◆ parent

GAbstractControl g4p_controls.GAbstractControl.parent = null

protected

Link to the parent panel (if null then it is on main window)

◆ rotAngle

float g4p_controls.GAbstractControl.rotAngle

protected

The angle to control is rotated (radians)

◆ tag

String g4p_controls.GAbstractControl.tag = ""

Simple tag that can be used by the user

◆ tagNo

int g4p_controls.GAbstractControl.tagNo

Allows user to specify a number for this control

◆ temp

double [] g4p_controls.GAbstractControl.temp = new double[2]

protected

Introduced V3 to speed up AffineTransform operations

◆ width

float g4p_controls.GAbstractControl.width

protected

Width and height of control in pixels for drawing background (changed form int data type in V3

Reimplemented in g4p_controls.GAbstractView.

◆ x

float g4p_controls.GAbstractControl.x

protected

Top left position of control in pixels (relative to parent or absolute if parent is null) (changed form int data type in V3

Reimplemented in g4p_controls.GAbstractView.

◆ y

float g4p_controls.GAbstractControl.y

protected

Reimplemented in g4p_controls.GAbstractView.

Classes

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ GAbstractControl() [1/3]

◆ GAbstractControl() [2/3]

◆ GAbstractControl() [3/3]

Member Function Documentation

◆ addControl() [1/3]

◆ addControl() [2/3]

◆ addControl() [3/3]

◆ addControlImpl()

◆ addControls()

◆ addEventHandler()

◆ addToParent()

◆ calcTransformedOrigin()

◆ controlSupportsToolTips()

◆ createEventHandler()

◆ dispose()

◆ draw()

◆ drawChildren()

◆ fireEvent()

◆ focusObjectZ()

◆ forceBufferUpdate()

◆ getAlpha()

◆ getCursorOver()

◆ getCX()

◆ getCY()

◆ getHeight()

◆ getLocalColorScheme()

◆ getPApplet()

◆ getParent()

◆ getRotation()

◆ getSnapshot()

◆ getTip()

◆ getTransform()

◆ getWidth()

◆ getX()

◆ getY()

◆ hasFocus()

◆ hideTip()

◆ isAvailable()

◆ isDisplayable()

◆ isEnabled()

◆ isOpaque()

◆ isSuitableForGroupControl()

◆ isVisible()

◆ loseFocus()

◆ makeBuffer()

◆ manageToolTip()

◆ mouseEvent()

◆ moveTo() [1/2]

◆ moveTo() [2/2]

◆ pre()

◆ removeTip()

◆ resize() [1/2]

◆ resize() [2/2]

◆ saveSnapshot() [1/2]

◆ saveSnapshot() [2/2]

◆ setAlpha() [1/2]

◆ setAlpha() [2/2]

◆ setAvailable()

◆ setCursorOver()

◆ setEnabled()

◆ setFocus()

◆ setLocalColor()

◆ setLocalColorScheme() [1/2]

◆ setLocalColorScheme() [2/2]

◆ setOpaque()

◆ setRotation() [1/2]

◆ setRotation() [2/2]

◆ setTip() [1/4]

◆ setTip() [2/4]

◆ setTip() [3/4]

◆ setTip() [4/4]

◆ setTipDisplayTime()
