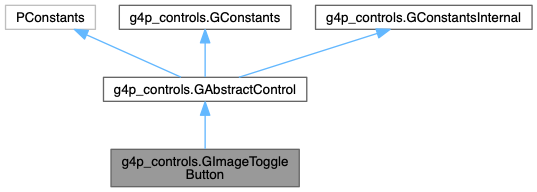

Inheritance diagram for g4p_controls.GImageToggleButton:

[legend]

Public Member Functions
void	draw ()

void	fireAllEvents (boolean all)

int	getState ()

	GImageToggleButton (PApplet theApplet, float p0, float p1)

	GImageToggleButton (PApplet theApplet, float p0, float p1, String offPicture, int nbrCols)

	GImageToggleButton (PApplet theApplet, float p0, float p1, String offPicture, int nbrCols, int nbrRows)

	GImageToggleButton (PApplet theApplet, float p0, float p1, String offPicture, String overPicture, int nbrCols)

	GImageToggleButton (PApplet theApplet, float p0, float p1, String offPicture, String overPicture, int nbrCols, int nbrRows)

void	mouseEvent (MouseEvent event)

void	setState (int newState)

int	stateValue ()

void	stateValue (int newState)

Public Member Functions inherited from g4p_controls.GAbstractControl
void	addControl (GAbstractControl c)

void	addControl (GAbstractControl c, float x, float y)

void	addControl (GAbstractControl c, float x, float y, float angle)

void	addControls (GAbstractControl... controls)

void	addEventHandler (Object obj, String methodName)

void	dispose ()

void	draw ()

void	forceBufferUpdate ()

	GAbstractControl (PApplet theApplet)

	GAbstractControl (PApplet theApplet, float p0, float p1)

	GAbstractControl (PApplet theApplet, float p0, float p1, float p2, float p3)

int	getAlpha ()

int	getCursorOver ()

float	getCX ()

float	getCY ()

float	getHeight ()

int	getLocalColorScheme ()

PApplet	getPApplet ()

GAbstractControl	getParent ()

float	getRotation ()

PGraphics	getSnapshot ()

GToolTip	getTip ()

float	getWidth ()

float	getX ()

float	getY ()

boolean	hasFocus ()

boolean	isDragging ()

boolean	isEnabled ()

boolean	isOpaque ()

boolean	isVisible ()

void	keyEvent (KeyEvent e)

void	mouseEvent (MouseEvent event)

void	moveTo (float px, float py)

void	moveTo (float px, float py, GControlMode mode)

void	post ()

void	pre ()

void	removeTip ()

boolean	saveSnapshot ()

boolean	saveSnapshot (String filename)

void	setAlpha (int alpha)

void	setAlpha (int alpha, boolean includeChildren)

void	setCursorOver (int cursorOver)

void	setEnabled (boolean enable)

void	setFocus (boolean focus)

void	setLocalColor (int colorNo, int color)

void	setLocalColorScheme (int cs)

void	setLocalColorScheme (int cs, boolean includeChildren)

void	setOpaque (boolean opaque)

void	setRotation (float angle)

void	setRotation (float angle, GControlMode mode)

void	setTip (GToolTip tt, float offset, float angle)

void	setTip (GToolTip tt, GAlign ax, GAlign ay, float gap)

void	setTip (String text, float offset, float angle)

void	setTip (String text, GAlign ax, GAlign ay, float gap)

void	setTipDisplayTime (long msecs)

void	setTipEnabled (boolean enable)

void	setTipHorz (boolean level)

void	setTipPos (float radius, float ang)

void	setTipPos (GAlign ax, GAlign ay, float gap)

void	setTipText (String text)

void	setVisible (boolean visible)

String	toString ()

Protected Attributes
int	nbrStates = 2

PImage[]	offImage

PImage[]	overImage

boolean	reportAllButtonEvents = false

int	stateValue = 0

int	status

Protected Attributes inherited from g4p_controls.GAbstractControl
boolean	allowChildren = true

boolean	allowToolTips = true

int	alphaLevel = G4P.globalAlpha

boolean	available = true

PGraphicsJava2D	buffer = null

boolean	bufferInvalid = true

LinkedList< GAbstractControl >	children = null

int	currSpot = -1

int	cursorOver = HAND

float	cx

float	cy

boolean	dragging = false

boolean	enabled = true

Method	eventHandlerMethod = null

String	eventHandlerMethodName

Object	eventHandlerObject = null

float	halfHeight

float	halfWidth

float	height

HotSpot[]	hotspots = null

int	lastSpot = -1

int	localColorScheme = G4P.globalColorScheme

boolean	opaque = false

float	ox

float	oy

Color[]	palette = null

GAbstractControl	parent = null

int	registeredMethods = 0

float	rotAngle

double[]	temp = new double[2]

GToolTip	tip = null

boolean	visible = true

float	width

PApplet	winApp

float	x

float	y

int	z = Z_STICKY

Additional Inherited Members
Public Attributes inherited from g4p_controls.GAbstractControl
String	tag = ""

int	tagNo

Public Attributes inherited from g4p_controls.GConstants
int	ALPHA_BLOCK = 128

int	ALPHA_PICK = 48

TextAttribute	BACKGROUND = TextAttribute.BACKGROUND

int	BLUE_SCHEME = 6

int	BOLD = Font.BOLD

int	CANCEL = JOptionPane.CANCEL_OPTION

int	CLOSE_WINDOW = 0x00000f02

int	CLOSED = JOptionPane.CLOSED_OPTION

int	CTRL_ANGULAR = 0x00000501

int	CTRL_HORIZONTAL = 0x00000502

int	CTRL_VERTICAL = 0x00000503

int	CYAN_SCHEME = 5

int	DECIMAL = 1

char	END = java.awt.event.KeyEvent.VK_END

int	ERROR_MESSAGE = JOptionPane.ERROR_MESSAGE

int	EXIT_APP = 0x00000f01

int	EXPONENT = 2

TextAttribute	FAMILY = TextAttribute.FAMILY

TextAttribute	FOREGROUND = TextAttribute.FOREGROUND

int	FORWARD = 1

int	GOLD_SCHEME = 7

int	GREEN_SCHEME = 1

int	HIDE_WINDOW = 0x00000f04

char	HOME = java.awt.event.KeyEvent.VK_HOME

int	INFO_MESSAGE = JOptionPane.INFORMATION_MESSAGE

int	INTEGER = 0

int	ITALIC = Font.ITALIC

int	KEEP_OPEN = 0x00000f03

int	NO = JOptionPane.NO_OPTION

int	OK = JOptionPane.OK_OPTION

int	OK_CANCEL = JOptionPane.OK_CANCEL_OPTION

int	ORANGE_SCHEME = 4

int	ORIENT_LEFT = -1

int	ORIENT_RIGHT = 1

int	ORIENT_TRACK = 0

int	PLAIN = Font.PLAIN

int	PLAIN_MESSAGE = JOptionPane.PLAIN_MESSAGE

TextAttribute	POSTURE = TextAttribute.POSTURE

Float	POSTURE_OBLIQUE = new Float(0.20f)

Float	POSTURE_REGULAR = new Float(0.0f)

int	PURPLE_SCHEME = 3

int	QUERY_MESSAGE = JOptionPane.QUESTION_MESSAGE

int	RED_SCHEME = 0

int	REVERSE = -1

int	SCHEME_10 = 10

int	SCHEME_11 = 11

int	SCHEME_12 = 12

int	SCHEME_13 = 13

int	SCHEME_14 = 14

int	SCHEME_15 = 15

int	SCHEME_8 = 8

int	SCHEME_9 = 9

int	SCROLLBARS_AUTOHIDE = 0x1000

int	SCROLLBARS_BOTH = 0x0003

int	SCROLLBARS_HORIZONTAL_ONLY = 0x0002

int	SCROLLBARS_NONE = 0x0000

int	SCROLLBARS_VERTICAL_ONLY = 0x0001

TextAttribute	SIZE = TextAttribute.SIZE

TextAttribute	STRIKETHROUGH = TextAttribute.STRIKETHROUGH

Boolean	STRIKETHROUGH_OFF = new Boolean(false)

Boolean	STRIKETHROUGH_ON = new Boolean(true)

TextAttribute	SUPERSCRIPT = TextAttribute.SUPERSCRIPT

Integer	SUPERSCRIPT_OFF = new Integer(0)

Integer	SUPERSCRIPT_SUB = new Integer(-1)

Integer	SUPERSCRIPT_SUPER = new Integer(1)

int	UNDEFINED = Integer.MAX_VALUE

TextAttribute	UNDERLINE = TextAttribute.UNDERLINE

int	UNDERLINE_OFF = Integer.valueOf(-1)

int	UNDERLINE_ON = TextAttribute.UNDERLINE_ON

int	USER_COL_SCHEME = 0x00010102

int	WARN_MESSAGE = JOptionPane.WARNING_MESSAGE

TextAttribute	WEIGHT = TextAttribute.WEIGHT

Float	WEIGHT_BOLD = new Float(2.0f)

Float	WEIGHT_DEMIBOLD = new Float(1.75f)

Float	WEIGHT_DEMILIGHT = new Float(0.875f)

Float	WEIGHT_EXTRA_LIGHT = new Float(0.5f)

Float	WEIGHT_EXTRABOLD = new Float(2.5f)

Float	WEIGHT_HEAVY = new Float(2.25f)

Float	WEIGHT_LIGHT = new Float(0.75f)

Float	WEIGHT_MEDIUM = new Float(1.5f)

Float	WEIGHT_REGULAR = new Float(1.0f)

Float	WEIGHT_SEMIBOLD = new Float(1.25f)

Float	WEIGHT_ULTRABOLD = new Float(2.75f)

TextAttribute	WIDTH = TextAttribute.WIDTH

Float	WIDTH_CONDENSED = new Float(0.75f)

Float	WIDTH_EXTENDED = new Float(1.5f)

Float	WIDTH_REGULAR = new Float(1.0f)

Float	WIDTH_SEMI_CONDENSED = new Float(0.875f)

Float	WIDTH_SEMI_EXTENDED = new Float(1.25f)

int	X4 = 1

int	X8 = 2

int	YELLOW_SCHEME = 2

int	YES = JOptionPane.YES_OPTION

int	YES_NO = JOptionPane.YES_NO_OPTION

int	YES_NO_CANCEL = JOptionPane.YES_NO_CANCEL_OPTION

Protected Member Functions inherited from g4p_controls.GAbstractControl
void	addControlImpl (GAbstractControl c, float x, float y, float angle)

void	addToParent (GAbstractControl p)

void	calcTransformedOrigin (float px, float py)

boolean	controlSupportsToolTips ()

void	createEventHandler (Object handlerObj, String methodName, Class[] param_classes, String[] param_names)

void	drawChildren ()

void	fireEvent (Object... objects)

int	focusObjectZ ()

PGraphics	getBuffer ()

int	getCurrHotSpot ()

AffineTransform	getTransform (AffineTransform aff)

void	hideTip ()

boolean	isAvailable ()

boolean	isDisplayable (int ascii)

boolean	isSuitableForGroupControl (GAbstractControl control)

void	loseFocus (GAbstractControl grabber)

void	makeBuffer ()

void	manageToolTip ()

void	resize (int w, int h)

void	resize (int w, int h, GControlMode mode)

void	setAvailable (boolean avail)

void	setZ (int parentZ)

void	showTip ()

void	takeFocus ()

void	updateBuffer ()

int	whichHotSpot (float px, float py)

Static Protected Attributes inherited from g4p_controls.GAbstractControl
static GAbstractControl	controlToTakeFocus = null

static GAbstractControl	cursorIsOver

static float	epsilon = 0.001f

static GAbstractControl	focusIsWith = null

Detailed Description

Buttons created from this class have 2 or more toggle states. If the number of states is N then the button's value will be in the range 0 to N-1. Most toggle buttons will have just two states and these have values 0 and 1.
Clicking on the button advances the state by one, restarting at zero after the last state.
Each state must have its own 'picture' and the user must supply these as a tiled image where the pictures are tiled in 1D or 2D arrangement without 'empty space' around the tiles.
If for any reason the library is unable to use the specified graphics then it will provide a default two state toggle switch.
It is also possible to provide an over-button image set for when the mouse moves over the button - this is optional.
The button control will always be resized to suit the state picture size (tile size).
The mouse is considered to be over the button it its position is over an opaque pixel in the state picture. Since transparent pixels are not included then the button shape can be different for each state.

Three types of event can be generated :-
PRESSED RELEASED CLICKED

By default the button only fires the CLICKED event which is typical of most GUIs. G4P supports two other events PRESSED and RELEASED which can be enabled using

button1.fireAllEvents(true);

.

A PRESSED event is created if the mouse button is pressed down over the button face. When the mouse button is released one of two events will be generated, the RELEASED event if the mouse has moved since the PRESSED event or CLICKED event if it has not moved. If you use this feature remember to test the event type in the event-handler.

Note that if you disable the button in its event handler e.g.

If you want the button is disable itself it should only be done on the CLICKED event e.g.

public void handleButtonEvents(GButton button, GEvent event) {
    if (button == button1 && event == GEvent.CLICKED) {
        button1.setEnabled(false);
    }
}

do not try this with the RELEASED or PRESSED event as it will lead to inconsistent behaviour.

Author: Peter Lager

Constructor & Destructor Documentation

◆ GImageToggleButton() [1/5]

g4p_controls.GImageToggleButton.GImageToggleButton	(	PApplet	theApplet,
		float	p0,
		float	p1
	)

Create the library default image-toggle-button at the stated position.

Parameters

theApplet	the main sketch or GWindow control for this control
p0	horizontal position of the control
p1	vertical position of the control

◆ GImageToggleButton() [2/5]

g4p_controls.GImageToggleButton.GImageToggleButton	(	PApplet	theApplet,
		float	p0,
		float	p1,
		String	offPicture,
		int	nbrCols
	)

Create an image-toggle-button.
Single row of tiles.

Parameters

theApplet	the main sketch or GWindow control for this control
p0	horizontal position of the control
p1	vertical position of the control
offPicture	the filename of bitmap containing toggle state pictures
nbrCols	number of tiles horizontally

◆ GImageToggleButton() [3/5]

g4p_controls.GImageToggleButton.GImageToggleButton	(	PApplet	theApplet,
		float	p0,
		float	p1,
		String	offPicture,
		int	nbrCols,
		int	nbrRows
	)

Create an image-toggle-button.

Parameters

theApplet	the main sketch or GWindow control for this control
p0	horizontal position of the control
p1	vertical position of the control
offPicture	the filename of bitmap containing toggle state pictures
nbrCols	number of tiles horizontally
nbrRows	number of tiles vertically

◆ GImageToggleButton() [4/5]

g4p_controls.GImageToggleButton.GImageToggleButton	(	PApplet	theApplet,
		float	p0,
		float	p1,
		String	offPicture,
		String	overPicture,
		int	nbrCols
	)

Create an image-toggle-button.
Single row of tiles.

Parameters

theApplet	the main sketch or GWindow control for this control
p0	horizontal position of the control
p1	vertical position of the control
offPicture	the filename of bitmap containing toggle state pictures
overPicture	the filename of bitmap containing mouse-over button toggle state pictures
nbrCols	number of tiles horizontally

◆ GImageToggleButton() [5/5]

g4p_controls.GImageToggleButton.GImageToggleButton	(	PApplet	theApplet,
		float	p0,
		float	p1,
		String	offPicture,
		String	overPicture,
		int	nbrCols,
		int	nbrRows
	)

Create an image-toggle-button.

Parameters

theApplet	the main sketch or GWindow control for this control
p0	horizontal position of the control
p1	vertical position of the control
offPicture	the filename of bitmap containing toggle state pictures
overPicture	the filename of bitmap containing mouse-over button toggle state pictures
nbrCols	number of tiles horizontally
nbrRows	number of tiles vertically

Member Function Documentation

◆ draw()

void g4p_controls.GImageToggleButton.draw ( )

Reimplemented from g4p_controls.GAbstractControl.

◆ fireAllEvents()

void g4p_controls.GImageToggleButton.fireAllEvents ( boolean all )

If the parameter is true all 3 event types are generated, if false only CLICKED events are generated (default behaviour).
For this toggle control I can't see the need for anything but CLICKED events

Parameters

all	true if we want all events fired

◆ getState()

int g4p_controls.GImageToggleButton.getState ( )

Get the current state value of the button.

Returns: get the current state of this control

◆ mouseEvent()

void g4p_controls.GImageToggleButton.mouseEvent ( MouseEvent event )

When a mouse button is clicked on a GImageToggleButton it generates the GEvent.CLICKED event. If you also want the button to generate GEvent.PRESSED and GEvent.RELEASED events then you need the following statement.

btnName.fireAllEvents(true);

void handleButtonEvents(void handleToggleButtonEvents(GImageToggleButton button, GEvent event) {
   if(button == btnName && event == GEvent.CLICKED){
       int buttonState = btnName.stateValue();
   }

Where

btnName

is the GImageToggleButton identifier (variable name)

Reimplemented from g4p_controls.GAbstractControl.

◆ setState()

void g4p_controls.GImageToggleButton.setState ( int newState )

Change the current toggle state.
If the parameter is not a valid toggle state value then it is ignored and the button's state value is unchanged.

Parameters

newState the new state for this control

◆ stateValue() [1/2]

int g4p_controls.GImageToggleButton.stateValue ( )

Returns: the current state value of this control.

Deprecated:: use getState()

◆ stateValue() [2/2]

void g4p_controls.GImageToggleButton.stateValue ( int newState )

Change the current toggle state.
If the parameter is not a valid toggle state value then it is ignored and the button's state value is unchanged.

Deprecated:: use setState(int)

Parameters

newState the new state for this control

Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GImageToggleButton() [1/5]

◆ GImageToggleButton() [2/5]

◆ GImageToggleButton() [3/5]

◆ GImageToggleButton() [4/5]

◆ GImageToggleButton() [5/5]

Member Function Documentation

◆ draw()

◆ fireAllEvents()

◆ getState()

◆ mouseEvent()

◆ setState()

◆ stateValue() [1/2]

◆ stateValue() [2/2]
