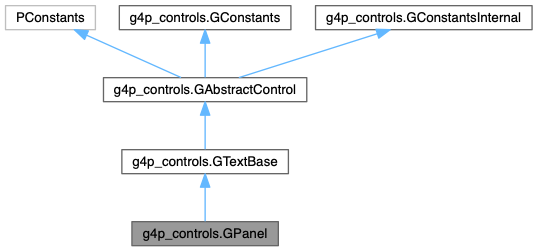

Inheritance diagram for g4p_controls.GPanel:

[legend]

Public Member Functions
void	addControl (GAbstractControl c, float x, float y, float angle)

void	clearDragArea ()

void	draw ()

int	getTabHeight ()

	GPanel (PApplet theApplet, float p0, float p1, float p2, float p3)

	GPanel (PApplet theApplet, float p0, float p1, float p2, float p3, String text)

boolean	isCollapsed ()

boolean	isCollapsible ()

boolean	isDraggable ()

boolean	isOver (float x, float y)

void	mouseEvent (MouseEvent event)

void	setCollapsed (boolean collapse)

void	setCollapsible (boolean c)

boolean	setDragArea ()

boolean	setDragArea (float xMin, float yMin, float xMax, float yMax)

void	setDraggable (boolean draggable)

void	setFont (Font font)

void	setOpaque (boolean opaque)

void	setText (String text)

void	setToolTip (String text)

String	toString ()

Public Member Functions inherited from g4p_controls.GTextBase
void	forceBufferUpdate ()

StyledString	getStyledText ()

String	getText ()

	GTextBase (PApplet theApplet, float p0, float p1, float p2, float p3)

boolean	loadText (String fname)

boolean	saveText (String fname)

void	setFont (Font font)

void	setStyledText (StyledString ss)

void	setText (String text)

void	setText (String text, GAlign horz, GAlign vert)

void	setTextAlign (GAlign horz, GAlign vert)

void	setTextBold ()

void	setTextBold (int start, int end)

void	setTextItalic ()

void	setTextItalic (int start, int end)

void	setTextPlain ()

Public Member Functions inherited from g4p_controls.GAbstractControl
void	addControl (GAbstractControl c)

void	addControl (GAbstractControl c, float x, float y)

void	addControl (GAbstractControl c, float x, float y, float angle)

void	addControls (GAbstractControl... controls)

void	addEventHandler (Object obj, String methodName)

void	dispose ()

void	draw ()

void	forceBufferUpdate ()

	GAbstractControl (PApplet theApplet)

	GAbstractControl (PApplet theApplet, float p0, float p1)

	GAbstractControl (PApplet theApplet, float p0, float p1, float p2, float p3)

int	getAlpha ()

int	getCursorOver ()

float	getCX ()

float	getCY ()

float	getHeight ()

int	getLocalColorScheme ()

PApplet	getPApplet ()

GAbstractControl	getParent ()

float	getRotation ()

PGraphics	getSnapshot ()

GToolTip	getTip ()

float	getWidth ()

float	getX ()

float	getY ()

boolean	hasFocus ()

boolean	isDragging ()

boolean	isEnabled ()

boolean	isOpaque ()

boolean	isVisible ()

void	keyEvent (KeyEvent e)

void	mouseEvent (MouseEvent event)

void	moveTo (float px, float py)

void	moveTo (float px, float py, GControlMode mode)

void	post ()

void	pre ()

void	removeTip ()

boolean	saveSnapshot ()

boolean	saveSnapshot (String filename)

void	setAlpha (int alpha)

void	setAlpha (int alpha, boolean includeChildren)

void	setCursorOver (int cursorOver)

void	setEnabled (boolean enable)

void	setFocus (boolean focus)

void	setLocalColor (int colorNo, int color)

void	setLocalColorScheme (int cs)

void	setLocalColorScheme (int cs, boolean includeChildren)

void	setOpaque (boolean opaque)

void	setRotation (float angle)

void	setRotation (float angle, GControlMode mode)

void	setTip (GToolTip tt, float offset, float angle)

void	setTip (GToolTip tt, GAlign ax, GAlign ay, float gap)

void	setTip (String text, float offset, float angle)

void	setTip (String text, GAlign ax, GAlign ay, float gap)

void	setTipDisplayTime (long msecs)

void	setTipEnabled (boolean enable)

void	setTipHorz (boolean level)

void	setTipPos (float radius, float ang)

void	setTipPos (GAlign ax, GAlign ay, float gap)

void	setTipText (String text)

void	setVisible (boolean visible)

String	toString ()

Protected Member Functions
void	addToParent (GAbstractControl p)

void	loseFocus (GAbstractControl grabber)

void	updateBuffer ()

Protected Member Functions inherited from g4p_controls.GTextBase
void	addAttributeImpl (TextAttribute style, Object value)

void	addAttributeImpl (TextAttribute style, Object value, int s, int e)

void	calcTextZone ()

void	displayText (Graphics2D g2d, LinkedList< TextLayoutInfo > lines)

void	displayText (Graphics2D g2d, LinkedList< TextLayoutInfo > lines, Color fore)

void	resizeToFit ()

void	resizeToFit (GControlMode mode)

Protected Member Functions inherited from g4p_controls.GAbstractControl
void	addControlImpl (GAbstractControl c, float x, float y, float angle)

void	addToParent (GAbstractControl p)

void	calcTransformedOrigin (float px, float py)

boolean	controlSupportsToolTips ()

void	createEventHandler (Object handlerObj, String methodName, Class[] param_classes, String[] param_names)

void	drawChildren ()

void	fireEvent (Object... objects)

int	focusObjectZ ()

PGraphics	getBuffer ()

int	getCurrHotSpot ()

AffineTransform	getTransform (AffineTransform aff)

void	hideTip ()

boolean	isAvailable ()

boolean	isDisplayable (int ascii)

boolean	isSuitableForGroupControl (GAbstractControl control)

void	loseFocus (GAbstractControl grabber)

void	makeBuffer ()

void	manageToolTip ()

void	resize (int w, int h)

void	resize (int w, int h, GControlMode mode)

void	setAvailable (boolean avail)

void	setZ (int parentZ)

void	showTip ()

void	takeFocus ()

void	updateBuffer ()

int	whichHotSpot (float px, float py)

Protected Attributes
boolean	collapsible = true

float	dockX

float	dockY

boolean	draggable = true

float	highX

float	highY

float	lowX

float	lowY

int	tabHeight

boolean	tabOnly = false

int	tabWidth

Protected Attributes inherited from g4p_controls.GTextBase
Font	localFont = G4P.displayFont

float	PAD = 2

StyledString	stext = new StyledString("")

GAlign	textAlignH = GAlign.LEFT

GAlign	textAlignV = GAlign.MIDDLE

Zone	textZone = new Zone()

Protected Attributes inherited from g4p_controls.GAbstractControl
boolean	allowChildren = true

boolean	allowToolTips = true

int	alphaLevel = G4P.globalAlpha

boolean	available = true

PGraphicsJava2D	buffer = null

boolean	bufferInvalid = true

LinkedList< GAbstractControl >	children = null

int	currSpot = -1

int	cursorOver = HAND

float	cx

float	cy

boolean	dragging = false

boolean	enabled = true

Method	eventHandlerMethod = null

String	eventHandlerMethodName

Object	eventHandlerObject = null

float	halfHeight

float	halfWidth

float	height

HotSpot[]	hotspots = null

int	lastSpot = -1

int	localColorScheme = G4P.globalColorScheme

boolean	opaque = false

float	ox

float	oy

Color[]	palette = null

GAbstractControl	parent = null

int	registeredMethods = 0

float	rotAngle

double[]	temp = new double[2]

GToolTip	tip = null

boolean	visible = true

float	width

PApplet	winApp

float	x

float	y

int	z = Z_STICKY

Static Protected Attributes
static int	COLLAPSED_BAR_SPOT = 1

static int	EXPANDED_BAR_SPOT = 2

static int	SURFACE_SPOT = 0

Static Protected Attributes inherited from g4p_controls.GAbstractControl
static GAbstractControl	controlToTakeFocus = null

static GAbstractControl	cursorIsOver

static float	epsilon = 0.001f

static GAbstractControl	focusIsWith = null

Additional Inherited Members
Public Attributes inherited from g4p_controls.GAbstractControl
String	tag = ""

int	tagNo

Public Attributes inherited from g4p_controls.GConstants
int	ALPHA_BLOCK = 128

int	ALPHA_PICK = 48

TextAttribute	BACKGROUND = TextAttribute.BACKGROUND

int	BLUE_SCHEME = 6

int	BOLD = Font.BOLD

int	CANCEL = JOptionPane.CANCEL_OPTION

int	CLOSE_WINDOW = 0x00000f02

int	CLOSED = JOptionPane.CLOSED_OPTION

int	CTRL_ANGULAR = 0x00000501

int	CTRL_HORIZONTAL = 0x00000502

int	CTRL_VERTICAL = 0x00000503

int	CYAN_SCHEME = 5

int	DECIMAL = 1

char	END = java.awt.event.KeyEvent.VK_END

int	ERROR_MESSAGE = JOptionPane.ERROR_MESSAGE

int	EXIT_APP = 0x00000f01

int	EXPONENT = 2

TextAttribute	FAMILY = TextAttribute.FAMILY

TextAttribute	FOREGROUND = TextAttribute.FOREGROUND

int	FORWARD = 1

int	GOLD_SCHEME = 7

int	GREEN_SCHEME = 1

int	HIDE_WINDOW = 0x00000f04

char	HOME = java.awt.event.KeyEvent.VK_HOME

int	INFO_MESSAGE = JOptionPane.INFORMATION_MESSAGE

int	INTEGER = 0

int	ITALIC = Font.ITALIC

int	KEEP_OPEN = 0x00000f03

int	NO = JOptionPane.NO_OPTION

int	OK = JOptionPane.OK_OPTION

int	OK_CANCEL = JOptionPane.OK_CANCEL_OPTION

int	ORANGE_SCHEME = 4

int	ORIENT_LEFT = -1

int	ORIENT_RIGHT = 1

int	ORIENT_TRACK = 0

int	PLAIN = Font.PLAIN

int	PLAIN_MESSAGE = JOptionPane.PLAIN_MESSAGE

TextAttribute	POSTURE = TextAttribute.POSTURE

Float	POSTURE_OBLIQUE = new Float(0.20f)

Float	POSTURE_REGULAR = new Float(0.0f)

int	PURPLE_SCHEME = 3

int	QUERY_MESSAGE = JOptionPane.QUESTION_MESSAGE

int	RED_SCHEME = 0

int	REVERSE = -1

int	SCHEME_10 = 10

int	SCHEME_11 = 11

int	SCHEME_12 = 12

int	SCHEME_13 = 13

int	SCHEME_14 = 14

int	SCHEME_15 = 15

int	SCHEME_8 = 8

int	SCHEME_9 = 9

int	SCROLLBARS_AUTOHIDE = 0x1000

int	SCROLLBARS_BOTH = 0x0003

int	SCROLLBARS_HORIZONTAL_ONLY = 0x0002

int	SCROLLBARS_NONE = 0x0000

int	SCROLLBARS_VERTICAL_ONLY = 0x0001

TextAttribute	SIZE = TextAttribute.SIZE

TextAttribute	STRIKETHROUGH = TextAttribute.STRIKETHROUGH

Boolean	STRIKETHROUGH_OFF = new Boolean(false)

Boolean	STRIKETHROUGH_ON = new Boolean(true)

TextAttribute	SUPERSCRIPT = TextAttribute.SUPERSCRIPT

Integer	SUPERSCRIPT_OFF = new Integer(0)

Integer	SUPERSCRIPT_SUB = new Integer(-1)

Integer	SUPERSCRIPT_SUPER = new Integer(1)

int	UNDEFINED = Integer.MAX_VALUE

TextAttribute	UNDERLINE = TextAttribute.UNDERLINE

int	UNDERLINE_OFF = Integer.valueOf(-1)

int	UNDERLINE_ON = TextAttribute.UNDERLINE_ON

int	USER_COL_SCHEME = 0x00010102

int	WARN_MESSAGE = JOptionPane.WARNING_MESSAGE

TextAttribute	WEIGHT = TextAttribute.WEIGHT

Float	WEIGHT_BOLD = new Float(2.0f)

Float	WEIGHT_DEMIBOLD = new Float(1.75f)

Float	WEIGHT_DEMILIGHT = new Float(0.875f)

Float	WEIGHT_EXTRA_LIGHT = new Float(0.5f)

Float	WEIGHT_EXTRABOLD = new Float(2.5f)

Float	WEIGHT_HEAVY = new Float(2.25f)

Float	WEIGHT_LIGHT = new Float(0.75f)

Float	WEIGHT_MEDIUM = new Float(1.5f)

Float	WEIGHT_REGULAR = new Float(1.0f)

Float	WEIGHT_SEMIBOLD = new Float(1.25f)

Float	WEIGHT_ULTRABOLD = new Float(2.75f)

TextAttribute	WIDTH = TextAttribute.WIDTH

Float	WIDTH_CONDENSED = new Float(0.75f)

Float	WIDTH_EXTENDED = new Float(1.5f)

Float	WIDTH_REGULAR = new Float(1.0f)

Float	WIDTH_SEMI_CONDENSED = new Float(0.875f)

Float	WIDTH_SEMI_EXTENDED = new Float(1.25f)

int	X4 = 1

int	X8 = 2

int	YELLOW_SCHEME = 2

int	YES = JOptionPane.YES_OPTION

int	YES_NO = JOptionPane.YES_NO_OPTION

int	YES_NO_CANCEL = JOptionPane.YES_NO_CANCEL_OPTION

Detailed Description

A component that can be used to group GUI components that can be dragged, collapsed (leaves title tab only) and un-collapsed.

When created the Panel is collapsed by default. To open the panel use setCollapsed(true); after creating it.

Once a component has been added the x/y coordinates of the control are calculated to be the centre of the panel to the centre of the control. This is to facilitate rotating of controls on panels

Author: Peter Lager

Constructor & Destructor Documentation

◆ GPanel() [1/2]

g4p_controls.GPanel.GPanel	(	PApplet	theApplet,
		float	p0,
		float	p1,
		float	p2,
		float	p3
	)

Create a Panel that comprises of 2 parts the tab which is used to select and move the panel and the container window below the tab which is used to hold other components.
If the panel fits inside the display window then its position will be constrained so that it can't be dragged outside the viewable area. Otherwise no constraint is applied.

Parameters

theApplet	the main sketch or GWindow control for this control
p0	x position based on control mode
p1	y position based on control mode
p2	x position or width based on control mode
p3	y position or height based on control mode

◆ GPanel() [2/2]

g4p_controls.GPanel.GPanel	(	PApplet	theApplet,
		float	p0,
		float	p1,
		float	p2,
		float	p3,
		String	text
	)

Create a Panel that comprises of 2 parts the tab which is used to select and move the panel and the container window below the tab which is used to hold other components.
If the panel fits inside the display window then its position will be constrained so that it can't be dragged outside the viewable area. Otherwise no constraint is applied.

Parameters

theApplet	the main sketch or GWindow control for this control
p0	x position based on control mode
p1	y position based on control mode
p2	x position or width based on control mode
p3	y position or height based on control mode
text	to appear on tab

Member Function Documentation

◆ addControl()

void g4p_controls.GPanel.addControl	(	GAbstractControl	c,
		float	x,
		float	y,
		float	angle
	)

This will call the base method in GAbstractControl and make the control unavailable if the panel is collapsed.
(Solves bug reported in ticket 44)

Parameters

c	the control to add.
x	the leftmost or centre position depending on controlMode
y	the topmost or centre position depending on controlMode
angle	the rotation angle (replaces any the angle specified in control)

Reimplemented from g4p_controls.GAbstractControl.

◆ addToParent()

void g4p_controls.GPanel.addToParent ( GAbstractControl p )

protected

This panel is being added to another additional changes that need to be made this control is added to another.

In this case we need to set the constraint limits to keep inside the parent.

Parameters

p	the parent

Reimplemented from g4p_controls.GAbstractControl.

◆ clearDragArea()

void g4p_controls.GPanel.clearDragArea ( )

Remove any drag constraint from this panel.

◆ draw()

void g4p_controls.GPanel.draw ( )

Draw the panel. If tabOnly == true then display the tab only else draw tab and all child (added) components

Reimplemented from g4p_controls.GAbstractControl.

◆ getTabHeight()

int g4p_controls.GPanel.getTabHeight ( )

Returns: the height of the panel tab

◆ isCollapsed()

boolean g4p_controls.GPanel.isCollapsed ( )

Find out if the panel is collapsed

Returns: true if collapsed

◆ isCollapsible()

boolean g4p_controls.GPanel.isCollapsible ( )

Returns: true if this panel can be collapsed

◆ isDraggable()

boolean g4p_controls.GPanel.isDraggable ( )

Can we drag this panel with the mouse?

Returns: true if draggable

◆ isOver()

boolean g4p_controls.GPanel.isOver	(	float	x,
		float	y
	)

Parameters

x	position of pixel
y	position of pixel

Returns: true if pixel position [x,y] is over the panel taking into account whether it is collapsed or not.

◆ loseFocus()

void g4p_controls.GPanel.loseFocus ( GAbstractControl grabber )

protected

What to do when the FPanel loses focus.

Reimplemented from g4p_controls.GAbstractControl.

◆ mouseEvent()

void g4p_controls.GPanel.mouseEvent ( MouseEvent event )

All GUI components are registered for mouseEvents

Reimplemented from g4p_controls.GAbstractControl.

◆ setCollapsed()

void g4p_controls.GPanel.setCollapsed ( boolean collapse )

Collapse or open the panel

Parameters

collapse if true collapse the panel else expand the panel

◆ setCollapsible()

void g4p_controls.GPanel.setCollapsible ( boolean c )

Determine whether the panel can be collapsed when the title bar is clicked.

If this is set to false then the panel will be expanded and it will not be possible to collapse it until set back to true.

Parameters

c	whether the panel is collapsible or not

◆ setDragArea() [1/2]

boolean g4p_controls.GPanel.setDragArea ( )

Provided the panel is small enough to fit inside the display area then the panel will be constrained to fit inside the display area.

Returns: true if the constraint was applied successfully else false

◆ setDragArea() [2/2]

boolean g4p_controls.GPanel.setDragArea	(	float	xMin,
		float	yMin,
		float	xMax,
		float	yMax
	)

Provided the panel is physically small enough this method will set the area within which the panel can be dragged and move the panel inside the area if not already inside.

Parameters

xMin	the closest distance the panel can be to the left-hand-side
yMin	the closest distance the panel can be to the top
xMax	the panel cannot move beyond this point on the right-hand-side
yMax	the panel cannot move beyond this point to the bottom

Returns: true if the constraint was applied successfully else false

◆ setDraggable()

void g4p_controls.GPanel.setDraggable ( boolean draggable )

Determines whether the panel can be dragged by the mouse or not.

Parameters

draggable true if the panel can be dragged else false

◆ setFont()

void g4p_controls.GPanel.setFont ( Font font )

Set the font to be used in this control

Parameters

font	AWT font to use

Reimplemented from g4p_controls.GTextBase.

◆ setOpaque()

void g4p_controls.GPanel.setOpaque ( boolean opaque )

Determines whether to show the tab and panel back colour. If the parameter is the same as the current state then no changes will be made.
If the parameter is false then the panel will be

expanded
made non-collasible
made unavailable to mouse control (so can't be dragged)

If the parameter is true then the panel will remain non-collapsible and the user must change this if required.

Parameters

opaque true if the panel is opaque

Reimplemented from g4p_controls.GAbstractControl.

◆ setText()

void g4p_controls.GPanel.setText ( String text )

Set the text to be displayed.

Parameters

text	the text to display

Reimplemented from g4p_controls.GTextBase.

◆ setToolTip()

void g4p_controls.GPanel.setToolTip ( String text )

Prevent this class from having a tool tip

◆ toString()

String g4p_controls.GPanel.toString ( )

Reimplemented from g4p_controls.GAbstractControl.

◆ updateBuffer()

void g4p_controls.GPanel.updateBuffer ( )

protected

Reimplemented from g4p_controls.GAbstractControl.

Member Data Documentation

◆ dockX

float g4p_controls.GPanel.dockX

protected

Used to restore position when closing panel

◆ tabHeight

int g4p_controls.GPanel.tabHeight

protected

The height of the tab calculated from font height + padding

◆ tabOnly

boolean g4p_controls.GPanel.tabOnly = false

protected

Whether the panel is displayed in full or tab only

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GPanel() [1/2]

◆ GPanel() [2/2]

Member Function Documentation

◆ addControl()

◆ addToParent()

◆ clearDragArea()

◆ draw()

◆ getTabHeight()

◆ isCollapsed()

◆ isCollapsible()

◆ isDraggable()

◆ isOver()

◆ loseFocus()

◆ mouseEvent()

◆ setCollapsed()

◆ setCollapsible()

◆ setDragArea() [1/2]

◆ setDragArea() [2/2]

◆ setDraggable()

◆ setFont()

◆ setOpaque()

◆ setText()

◆ setToolTip()

◆ toString()

◆ updateBuffer()

Member Data Documentation

◆ dockX

◆ tabHeight

◆ tabOnly
