g4p_controls.GValueControl2D Class Referenceabstract

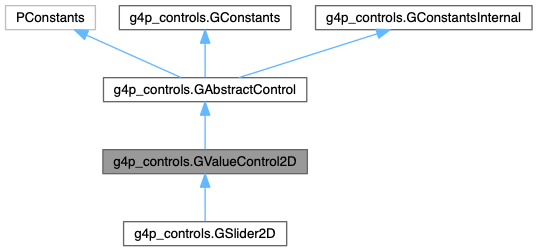

Inheritance diagram for g4p_controls.GValueControl2D:
Inheritance graph
[legend]

Public Member Functions

 GValueControl2D (PApplet theApplet, float p0, float p1, float p2, float p3)

void pre ()

- Public Member Functions inherited from g4p_controls.GAbstractControl
void addControl (GAbstractControl c)

void addControl (GAbstractControl c, float x, float y)

void addControl (GAbstractControl c, float x, float y, float angle)

void addControls (GAbstractControl... controls)

void addEventHandler (Object obj, String methodName)

void dispose ()

void draw ()

void forceBufferUpdate ()

 GAbstractControl (PApplet theApplet)

 GAbstractControl (PApplet theApplet, float p0, float p1)

 GAbstractControl (PApplet theApplet, float p0, float p1, float p2, float p3)

int getAlpha ()

int getCursorOver ()

float getCX ()

float getCY ()

float getHeight ()

int getLocalColorScheme ()

PApplet getPApplet ()

GAbstractControl getParent ()

float getRotation ()

PGraphics getSnapshot ()

GToolTip getTip ()

float getWidth ()

float getX ()

float getY ()

boolean hasFocus ()

boolean isDragging ()

boolean isEnabled ()

boolean isOpaque ()

boolean isVisible ()

void keyEvent (KeyEvent e)

void mouseEvent (MouseEvent event)

void moveTo (float px, float py)

void moveTo (float px, float py, GControlMode mode)

void post ()

void pre ()

void removeTip ()

boolean saveSnapshot ()

boolean saveSnapshot (String filename)

void setAlpha (int alpha)

void setAlpha (int alpha, boolean includeChildren)

void setCursorOver (int cursorOver)

void setEnabled (boolean enable)

void setFocus (boolean focus)

void setLocalColor (int colorNo, int color)

void setLocalColorScheme (int cs)

void setLocalColorScheme (int cs, boolean includeChildren)

void setOpaque (boolean opaque)

void setRotation (float angle)

void setRotation (float angle, GControlMode mode)

void setTip (GToolTip tt, float offset, float angle)

void setTip (GToolTip tt, GAlign ax, GAlign ay, float gap)

void setTip (String text, float offset, float angle)

void setTip (String text, GAlign ax, GAlign ay, float gap)

void setTipDisplayTime (long msecs)

void setTipEnabled (boolean enable)

void setTipHorz (boolean level)

void setTipPos (float radius, float ang)

void setTipPos (GAlign ax, GAlign ay, float gap)

void setTipText (String text)

void setVisible (boolean visible)

String toString ()


Protected Member Functions

void setEpsilon ()

void updateDueToValueChanging ()

- Protected Member Functions inherited from g4p_controls.GAbstractControl
void addControlImpl (GAbstractControl c, float x, float y, float angle)

void addToParent (GAbstractControl p)

void calcTransformedOrigin (float px, float py)

boolean controlSupportsToolTips ()

void createEventHandler (Object handlerObj, String methodName, Class[] param_classes, String[] param_names)

void drawChildren ()

void fireEvent (Object... objects)

int focusObjectZ ()

PGraphics getBuffer ()

int getCurrHotSpot ()

AffineTransform getTransform (AffineTransform aff)

void hideTip ()

boolean isAvailable ()

boolean isDisplayable (int ascii)

boolean isSuitableForGroupControl (GAbstractControl control)

void loseFocus (GAbstractControl grabber)

void makeBuffer ()

void manageToolTip ()

void resize (int w, int h)

void resize (int w, int h, GControlMode mode)

void setAvailable (boolean avail)

void setZ (int parentZ)

void showTip ()

void takeFocus ()

void updateBuffer ()

int whichHotSpot (float px, float py)


Protected Attributes

float easing = 1.0f

float offsetH

float offsetV

float parametricPosX = 0.5f

float parametricPosY = 0.5f

float parametricTargetX = 0.5f

float parametricTargetY = 0.5f

int precision = 2

int valueType = DECIMAL

- Protected Attributes inherited from g4p_controls.GAbstractControl
boolean allowChildren = true

boolean allowToolTips = true

int alphaLevel = G4P.globalAlpha

boolean available = true

PGraphicsJava2D buffer = null

boolean bufferInvalid = true

LinkedList< GAbstractControl > children = null

int currSpot = -1

int cursorOver = HAND

float cx

float cy

boolean dragging = false

boolean enabled = true

Method eventHandlerMethod = null

String eventHandlerMethodName

Object eventHandlerObject = null

float halfHeight

float halfWidth

float height

HotSpot[] hotspots = null

int lastSpot = -1

int localColorScheme = G4P.globalColorScheme

boolean opaque = false

float ox

float oy

Color[] palette = null

GAbstractControl parent = null

int registeredMethods = 0

float rotAngle

double[] temp = new double[2]

GToolTip tip = null

boolean visible = true

float width

PApplet winApp

float x

float y

int z = Z_STICKY


Static Protected Attributes

static int THUMB_SPOT = 1

static int TRACK_SPOT = 2

- Static Protected Attributes inherited from g4p_controls.GAbstractControl
static GAbstractControl controlToTakeFocus = null

static GAbstractControl cursorIsOver

static float epsilon = 0.001f

static GAbstractControl focusIsWith = null


Additional Inherited Members

- Public Attributes inherited from g4p_controls.GAbstractControl
String tag = ""

int tagNo

- Public Attributes inherited from g4p_controls.GConstants
int ALPHA_BLOCK = 128

int ALPHA_PICK = 48

TextAttribute BACKGROUND = TextAttribute.BACKGROUND

int BLUE_SCHEME = 6

int BOLD = Font.BOLD

int CANCEL = JOptionPane.CANCEL_OPTION

int CLOSE_WINDOW = 0x00000f02

int CLOSED = JOptionPane.CLOSED_OPTION

int CTRL_ANGULAR = 0x00000501

int CTRL_HORIZONTAL = 0x00000502

int CTRL_VERTICAL = 0x00000503

int CYAN_SCHEME = 5

int DECIMAL = 1

char END = java.awt.event.KeyEvent.VK_END

int ERROR_MESSAGE = JOptionPane.ERROR_MESSAGE

int EXIT_APP = 0x00000f01

int EXPONENT = 2

TextAttribute FAMILY = TextAttribute.FAMILY

TextAttribute FOREGROUND = TextAttribute.FOREGROUND

int FORWARD = 1

int GOLD_SCHEME = 7

int GREEN_SCHEME = 1

int HIDE_WINDOW = 0x00000f04

char HOME = java.awt.event.KeyEvent.VK_HOME

int INFO_MESSAGE = JOptionPane.INFORMATION_MESSAGE

int INTEGER = 0

int ITALIC = Font.ITALIC

int KEEP_OPEN = 0x00000f03

int NO = JOptionPane.NO_OPTION

int OK = JOptionPane.OK_OPTION

int OK_CANCEL = JOptionPane.OK_CANCEL_OPTION

int ORANGE_SCHEME = 4

int ORIENT_LEFT = -1

int ORIENT_RIGHT = 1

int ORIENT_TRACK = 0

int PLAIN = Font.PLAIN

int PLAIN_MESSAGE = JOptionPane.PLAIN_MESSAGE

TextAttribute POSTURE = TextAttribute.POSTURE

Float POSTURE_OBLIQUE = new Float(0.20f)

Float POSTURE_REGULAR = new Float(0.0f)

int PURPLE_SCHEME = 3

int QUERY_MESSAGE = JOptionPane.QUESTION_MESSAGE

int RED_SCHEME = 0

int REVERSE = -1

int SCHEME_10 = 10

int SCHEME_11 = 11

int SCHEME_12 = 12

int SCHEME_13 = 13

int SCHEME_14 = 14

int SCHEME_15 = 15

int SCHEME_8 = 8

int SCHEME_9 = 9

int SCROLLBARS_AUTOHIDE = 0x1000

int SCROLLBARS_BOTH = 0x0003

int SCROLLBARS_HORIZONTAL_ONLY = 0x0002

int SCROLLBARS_NONE = 0x0000

int SCROLLBARS_VERTICAL_ONLY = 0x0001

TextAttribute SIZE = TextAttribute.SIZE

TextAttribute STRIKETHROUGH = TextAttribute.STRIKETHROUGH

Boolean STRIKETHROUGH_OFF = new Boolean(false)

Boolean STRIKETHROUGH_ON = new Boolean(true)

TextAttribute SUPERSCRIPT = TextAttribute.SUPERSCRIPT

Integer SUPERSCRIPT_OFF = new Integer(0)

Integer SUPERSCRIPT_SUB = new Integer(-1)

Integer SUPERSCRIPT_SUPER = new Integer(1)

int UNDEFINED = Integer.MAX_VALUE

TextAttribute UNDERLINE = TextAttribute.UNDERLINE

int UNDERLINE_OFF = Integer.valueOf(-1)

int UNDERLINE_ON = TextAttribute.UNDERLINE_ON

int USER_COL_SCHEME = 0x00010102

int WARN_MESSAGE = JOptionPane.WARNING_MESSAGE

TextAttribute WEIGHT = TextAttribute.WEIGHT

Float WEIGHT_BOLD = new Float(2.0f)

Float WEIGHT_DEMIBOLD = new Float(1.75f)

Float WEIGHT_DEMILIGHT = new Float(0.875f)

Float WEIGHT_EXTRA_LIGHT = new Float(0.5f)

Float WEIGHT_EXTRABOLD = new Float(2.5f)

Float WEIGHT_HEAVY = new Float(2.25f)

Float WEIGHT_LIGHT = new Float(0.75f)

Float WEIGHT_MEDIUM = new Float(1.5f)

Float WEIGHT_REGULAR = new Float(1.0f)

Float WEIGHT_SEMIBOLD = new Float(1.25f)

Float WEIGHT_ULTRABOLD = new Float(2.75f)

TextAttribute WIDTH = TextAttribute.WIDTH

Float WIDTH_CONDENSED = new Float(0.75f)

Float WIDTH_EXTENDED = new Float(1.5f)

Float WIDTH_REGULAR = new Float(1.0f)

Float WIDTH_SEMI_CONDENSED = new Float(0.875f)

Float WIDTH_SEMI_EXTENDED = new Float(1.25f)

int X4 = 1

int X8 = 2

int YELLOW_SCHEME = 2

int YES = JOptionPane.YES_OPTION

int YES_NO = JOptionPane.YES_NO_OPTION

int YES_NO_CANCEL = JOptionPane.YES_NO_CANCEL_OPTION


Detailed Description

Base class for controls that have 2 variables e.f. GSlider2D

Author
Peter Lager

Constructor & Destructor Documentation

◆ GValueControl2D()

g4p_controls.GValueControl2D.GValueControl2D ( PApplet  theApplet,
float  p0,
float  p1,
float  p2,
float  p3
)

Base class for 2 dimensional slider

Parameters
theAppletthe main sketch or GWindow control for this control
p0x position based on control mode
p1y position based on control mode
p2x position or width based on control mode
p3y position or height based on control mode

Member Function Documentation

◆ pre()

void g4p_controls.GValueControl2D.pre ( )

Handle easing

Reimplemented from g4p_controls.GAbstractControl.

◆ setEpsilon()

void g4p_controls.GValueControl2D.setEpsilon ( )
protected

Make epsilon to match the value of 1 pixel or the precision which ever is the smaller

◆ updateDueToValueChanging()

void g4p_controls.GValueControl2D.updateDueToValueChanging ( )
protected

This should be overridden in child classes so they can perform any class specific actions when the value changes. Override this in GSlider to change the hotshot poaition.

Reimplemented in g4p_controls.GSlider2D.
