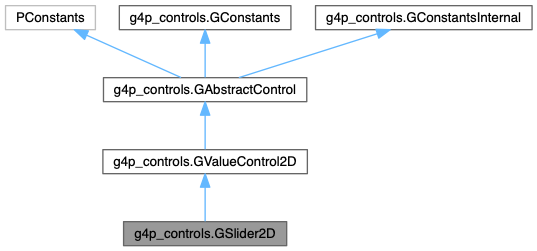

Inheritance diagram for g4p_controls.GSlider2D:

[legend]

Public Member Functions
void	draw ()

float	getValueXF ()

int	getValueXI ()

String	getValueXS ()

float	getValueYF ()

int	getValueYI ()

String	getValueYS ()

	GSlider2D (PApplet theApplet, float p0, float p1, float p2, float p3)

void	mouseEvent (MouseEvent event)

void	setEasing (float easeBy)

void	setLimitsX (float initValue, float start, float end)

void	setLimitsX (float start, float end)

void	setLimitsX (int initValue, int start, int end)

void	setLimitsY (float initValue, float start, float end)

void	setLimitsY (float start, float end)

void	setLimitsY (int initValue, int start, int end)

void	setLimitsY (int start, int end)

void	setNumberFormat (int numberFormat)

void	setNumberFormat (int numberFormat, int precision)

void	setPrecision (int nd)

void	setValueX (float v)

void	setValueXY (float vx, float vy)

void	setValueY (float v)

void	setXlimits (int start, int end)

Public Member Functions inherited from g4p_controls.GValueControl2D
	GValueControl2D (PApplet theApplet, float p0, float p1, float p2, float p3)

void	pre ()

Public Member Functions inherited from g4p_controls.GAbstractControl
void	addControl (GAbstractControl c)

void	addControl (GAbstractControl c, float x, float y)

void	addControl (GAbstractControl c, float x, float y, float angle)

void	addControls (GAbstractControl... controls)

void	addEventHandler (Object obj, String methodName)

void	dispose ()

void	draw ()

void	forceBufferUpdate ()

	GAbstractControl (PApplet theApplet)

	GAbstractControl (PApplet theApplet, float p0, float p1)

	GAbstractControl (PApplet theApplet, float p0, float p1, float p2, float p3)

int	getAlpha ()

int	getCursorOver ()

float	getCX ()

float	getCY ()

float	getHeight ()

int	getLocalColorScheme ()

PApplet	getPApplet ()

GAbstractControl	getParent ()

float	getRotation ()

PGraphics	getSnapshot ()

GToolTip	getTip ()

float	getWidth ()

float	getX ()

float	getY ()

boolean	hasFocus ()

boolean	isDragging ()

boolean	isEnabled ()

boolean	isOpaque ()

boolean	isVisible ()

void	keyEvent (KeyEvent e)

void	mouseEvent (MouseEvent event)

void	moveTo (float px, float py)

void	moveTo (float px, float py, GControlMode mode)

void	post ()

void	pre ()

void	removeTip ()

boolean	saveSnapshot ()

boolean	saveSnapshot (String filename)

void	setAlpha (int alpha)

void	setAlpha (int alpha, boolean includeChildren)

void	setCursorOver (int cursorOver)

void	setEnabled (boolean enable)

void	setFocus (boolean focus)

void	setLocalColor (int colorNo, int color)

void	setLocalColorScheme (int cs)

void	setLocalColorScheme (int cs, boolean includeChildren)

void	setOpaque (boolean opaque)

void	setRotation (float angle)

void	setRotation (float angle, GControlMode mode)

void	setTip (GToolTip tt, float offset, float angle)

void	setTip (GToolTip tt, GAlign ax, GAlign ay, float gap)

void	setTip (String text, float offset, float angle)

void	setTip (String text, GAlign ax, GAlign ay, float gap)

void	setTipDisplayTime (long msecs)

void	setTipEnabled (boolean enable)

void	setTipHorz (boolean level)

void	setTipPos (float radius, float ang)

void	setTipPos (GAlign ax, GAlign ay, float gap)

void	setTipText (String text)

void	setVisible (boolean visible)

String	toString ()

Protected Member Functions
String	getNumericDisplayString (float number)

void	updateBuffer ()

void	updateDueToValueChanging ()

Protected Member Functions inherited from g4p_controls.GValueControl2D
void	setEpsilon ()

void	updateDueToValueChanging ()

Protected Member Functions inherited from g4p_controls.GAbstractControl
void	addControlImpl (GAbstractControl c, float x, float y, float angle)

void	addToParent (GAbstractControl p)

void	calcTransformedOrigin (float px, float py)

boolean	controlSupportsToolTips ()

void	createEventHandler (Object handlerObj, String methodName, Class[] param_classes, String[] param_names)

void	drawChildren ()

void	fireEvent (Object... objects)

int	focusObjectZ ()

PGraphics	getBuffer ()

int	getCurrHotSpot ()

AffineTransform	getTransform (AffineTransform aff)

void	hideTip ()

boolean	isAvailable ()

boolean	isDisplayable (int ascii)

boolean	isSuitableForGroupControl (GAbstractControl control)

void	loseFocus (GAbstractControl grabber)

void	makeBuffer ()

void	manageToolTip ()

void	resize (int w, int h)

void	resize (int w, int h, GControlMode mode)

void	setAvailable (boolean avail)

void	setZ (int parentZ)

void	showTip ()

void	takeFocus ()

void	updateBuffer ()

int	whichHotSpot (float px, float py)

Protected Attributes
int	downHotSpot = -1

float	dragD

float	dragHeight

float	dragWidth

float	endXlimit = 1

float	endYlimit = 1

float	startXlimit = 0

float	startYlimit = 0

int	status = OFF_CONTROL

Protected Attributes inherited from g4p_controls.GValueControl2D
float	easing = 1.0f

float	offsetH

float	offsetV

float	parametricPosX = 0.5f

float	parametricPosY = 0.5f

float	parametricTargetX = 0.5f

float	parametricTargetY = 0.5f

int	precision = 2

int	valueType = DECIMAL

Protected Attributes inherited from g4p_controls.GAbstractControl
boolean	allowChildren = true

boolean	allowToolTips = true

int	alphaLevel = G4P.globalAlpha

boolean	available = true

PGraphicsJava2D	buffer = null

boolean	bufferInvalid = true

LinkedList< GAbstractControl >	children = null

int	currSpot = -1

int	cursorOver = HAND

float	cx

float	cy

boolean	dragging = false

boolean	enabled = true

Method	eventHandlerMethod = null

String	eventHandlerMethodName

Object	eventHandlerObject = null

float	halfHeight

float	halfWidth

float	height

HotSpot[]	hotspots = null

int	lastSpot = -1

int	localColorScheme = G4P.globalColorScheme

boolean	opaque = false

float	ox

float	oy

Color[]	palette = null

GAbstractControl	parent = null

int	registeredMethods = 0

float	rotAngle

double[]	temp = new double[2]

GToolTip	tip = null

boolean	visible = true

float	width

PApplet	winApp

float	x

float	y

int	z = Z_STICKY

Additional Inherited Members
Public Attributes inherited from g4p_controls.GAbstractControl
String	tag = ""

int	tagNo

Public Attributes inherited from g4p_controls.GConstants
int	ALPHA_BLOCK = 128

int	ALPHA_PICK = 48

TextAttribute	BACKGROUND = TextAttribute.BACKGROUND

int	BLUE_SCHEME = 6

int	BOLD = Font.BOLD

int	CANCEL = JOptionPane.CANCEL_OPTION

int	CLOSE_WINDOW = 0x00000f02

int	CLOSED = JOptionPane.CLOSED_OPTION

int	CTRL_ANGULAR = 0x00000501

int	CTRL_HORIZONTAL = 0x00000502

int	CTRL_VERTICAL = 0x00000503

int	CYAN_SCHEME = 5

int	DECIMAL = 1

char	END = java.awt.event.KeyEvent.VK_END

int	ERROR_MESSAGE = JOptionPane.ERROR_MESSAGE

int	EXIT_APP = 0x00000f01

int	EXPONENT = 2

TextAttribute	FAMILY = TextAttribute.FAMILY

TextAttribute	FOREGROUND = TextAttribute.FOREGROUND

int	FORWARD = 1

int	GOLD_SCHEME = 7

int	GREEN_SCHEME = 1

int	HIDE_WINDOW = 0x00000f04

char	HOME = java.awt.event.KeyEvent.VK_HOME

int	INFO_MESSAGE = JOptionPane.INFORMATION_MESSAGE

int	INTEGER = 0

int	ITALIC = Font.ITALIC

int	KEEP_OPEN = 0x00000f03

int	NO = JOptionPane.NO_OPTION

int	OK = JOptionPane.OK_OPTION

int	OK_CANCEL = JOptionPane.OK_CANCEL_OPTION

int	ORANGE_SCHEME = 4

int	ORIENT_LEFT = -1

int	ORIENT_RIGHT = 1

int	ORIENT_TRACK = 0

int	PLAIN = Font.PLAIN

int	PLAIN_MESSAGE = JOptionPane.PLAIN_MESSAGE

TextAttribute	POSTURE = TextAttribute.POSTURE

Float	POSTURE_OBLIQUE = new Float(0.20f)

Float	POSTURE_REGULAR = new Float(0.0f)

int	PURPLE_SCHEME = 3

int	QUERY_MESSAGE = JOptionPane.QUESTION_MESSAGE

int	RED_SCHEME = 0

int	REVERSE = -1

int	SCHEME_10 = 10

int	SCHEME_11 = 11

int	SCHEME_12 = 12

int	SCHEME_13 = 13

int	SCHEME_14 = 14

int	SCHEME_15 = 15

int	SCHEME_8 = 8

int	SCHEME_9 = 9

int	SCROLLBARS_AUTOHIDE = 0x1000

int	SCROLLBARS_BOTH = 0x0003

int	SCROLLBARS_HORIZONTAL_ONLY = 0x0002

int	SCROLLBARS_NONE = 0x0000

int	SCROLLBARS_VERTICAL_ONLY = 0x0001

TextAttribute	SIZE = TextAttribute.SIZE

TextAttribute	STRIKETHROUGH = TextAttribute.STRIKETHROUGH

Boolean	STRIKETHROUGH_OFF = new Boolean(false)

Boolean	STRIKETHROUGH_ON = new Boolean(true)

TextAttribute	SUPERSCRIPT = TextAttribute.SUPERSCRIPT

Integer	SUPERSCRIPT_OFF = new Integer(0)

Integer	SUPERSCRIPT_SUB = new Integer(-1)

Integer	SUPERSCRIPT_SUPER = new Integer(1)

int	UNDEFINED = Integer.MAX_VALUE

TextAttribute	UNDERLINE = TextAttribute.UNDERLINE

int	UNDERLINE_OFF = Integer.valueOf(-1)

int	UNDERLINE_ON = TextAttribute.UNDERLINE_ON

int	USER_COL_SCHEME = 0x00010102

int	WARN_MESSAGE = JOptionPane.WARNING_MESSAGE

TextAttribute	WEIGHT = TextAttribute.WEIGHT

Float	WEIGHT_BOLD = new Float(2.0f)

Float	WEIGHT_DEMIBOLD = new Float(1.75f)

Float	WEIGHT_DEMILIGHT = new Float(0.875f)

Float	WEIGHT_EXTRA_LIGHT = new Float(0.5f)

Float	WEIGHT_EXTRABOLD = new Float(2.5f)

Float	WEIGHT_HEAVY = new Float(2.25f)

Float	WEIGHT_LIGHT = new Float(0.75f)

Float	WEIGHT_MEDIUM = new Float(1.5f)

Float	WEIGHT_REGULAR = new Float(1.0f)

Float	WEIGHT_SEMIBOLD = new Float(1.25f)

Float	WEIGHT_ULTRABOLD = new Float(2.75f)

TextAttribute	WIDTH = TextAttribute.WIDTH

Float	WIDTH_CONDENSED = new Float(0.75f)

Float	WIDTH_EXTENDED = new Float(1.5f)

Float	WIDTH_REGULAR = new Float(1.0f)

Float	WIDTH_SEMI_CONDENSED = new Float(0.875f)

Float	WIDTH_SEMI_EXTENDED = new Float(1.25f)

int	X4 = 1

int	X8 = 2

int	YELLOW_SCHEME = 2

int	YES = JOptionPane.YES_OPTION

int	YES_NO = JOptionPane.YES_NO_OPTION

int	YES_NO_CANCEL = JOptionPane.YES_NO_CANCEL_OPTION

Static Protected Attributes inherited from g4p_controls.GValueControl2D
static int	THUMB_SPOT = 1

static int	TRACK_SPOT = 2

Static Protected Attributes inherited from g4p_controls.GAbstractControl
static GAbstractControl	controlToTakeFocus = null

static GAbstractControl	cursorIsOver

static float	epsilon = 0.001f

static GAbstractControl	focusIsWith = null

Detailed Description

This slider is used to control 2 variables by dragging the thumb over a 2D surface. It has all the features of the standard slider (GSlider) except that it does not have ticks or stick-to-ticks functionality.

If no limits are set then the control will return a value in the range 0.0 to 1.0 for both the x and the y axis. The setXlimits and setYlimits can be used to set a different range for each axis independently.

The minimum size for this control is 40x40 pixels and this is enforced when the control is created. If necessary the width and/or height the rectangle will be increased to 40pixels.

Author: Peter Lager

Constructor & Destructor Documentation

◆ GSlider2D()

g4p_controls.GSlider2D.GSlider2D	(	PApplet	theApplet,
		float	p0,
		float	p1,
		float	p2,
		float	p3
	)

Create a 2D slider inside the specified rectangle.

Parameters

theApplet	the main sketch or GWindow control for this control
p0	x position based on control mode
p1	y position based on control mode
p2	x position or width based on control mode
p3	y position or height based on control mode

Member Function Documentation

◆ draw()

void g4p_controls.GSlider2D.draw ( )

Reimplemented from g4p_controls.GAbstractControl.

◆ getNumericDisplayString()

String g4p_controls.GSlider2D.getNumericDisplayString ( float number )

protected

Used to format the number into a string for display.

Parameters

number

Returns: the number formated as a string

◆ getValueXF()

float g4p_controls.GSlider2D.getValueXF ( )

Returns: the current X value as a float

◆ getValueXI()

int g4p_controls.GSlider2D.getValueXI ( )

Returns: the current X value as an integer.
DECIMAL and EXPONENT value types will be rounded to the nearest integer.

◆ getValueXS()

String g4p_controls.GSlider2D.getValueXS ( )

Returns: the current X value as a string taking into account the number format.

◆ getValueYF()

float g4p_controls.GSlider2D.getValueYF ( )

Returns: the current Y value as a float

◆ getValueYI()

int g4p_controls.GSlider2D.getValueYI ( )

Returns: the current Y value as an integer.
DECIMAL and EXPONENT value types will be rounded to the nearest integer.

◆ getValueYS()

String g4p_controls.GSlider2D.getValueYS ( )

Returns: the current Y value as a string taking into account the number format.

◆ mouseEvent()

void g4p_controls.GSlider2D.mouseEvent ( MouseEvent event )

Reimplemented from g4p_controls.GAbstractControl.

◆ setEasing()

void g4p_controls.GSlider2D.setEasing ( float easeBy )

Set the amount of easing to be used when a value is changing. The default value is 1 (no easing) values < 1 will cause the value to rush from its starting value and decelerate towards its final values. In other words it smoothes the movement of the slider thumb or knob rotation.

Parameters

easeBy the easing to set

◆ setLimitsX() [1/3]

void g4p_controls.GSlider2D.setLimitsX	(	float	initValue,
		float	start,
		float	end
	)

X (horz) limits Sets the initial value and the range of values to be returned. This method will assume that you want to set the valueType to DECIMAL.

Parameters

initValue	the initial value
start	the X start value of the range
end	the X end value of the range

◆ setLimitsX() [2/3]

void g4p_controls.GSlider2D.setLimitsX	(	float	start,
		float	end
	)

X (horz) limits Sets the range of values to be returned. This method will assume that you want to set the valueType to DECIMAL

Parameters

start	the X start value of the range
end	the X end value of the range

◆ setLimitsX() [3/3]

void g4p_controls.GSlider2D.setLimitsX	(	int	initValue,
		int	start,
		int	end
	)

X (horz) limits Sets the initial value and the range of values to be returned. This method will assume that you want to set the valueType to INTEGER.

Parameters

initValue	the initial value
start	the X start value of the range
end	the X end value of the range

◆ setLimitsY() [1/4]

void g4p_controls.GSlider2D.setLimitsY	(	float	initValue,
		float	start,
		float	end
	)

Y (vert) limits Sets the initial value and the range of values to be returned. This method will assume that you want to set the valueType to DECIMAL.

Parameters

initValue	the initial value
start	the Y start value of the range
end	the Y end value of the range

◆ setLimitsY() [2/4]

void g4p_controls.GSlider2D.setLimitsY	(	float	start,
		float	end
	)

Y (vert) limits Sets the range of values to be returned. This method will assume that you want to set the valueType to DECIMAL

Parameters

start	the Y start value of the range
end	the Y end value of the range

◆ setLimitsY() [3/4]

void g4p_controls.GSlider2D.setLimitsY	(	int	initValue,
		int	start,
		int	end
	)

Y (vert) limits Sets the initial value and the range of values to be returned. This method will assume that you want to set the valueType to INTEGER.

Parameters

initValue	the initial value
start	the start value of the range
end	the end value of the range

◆ setLimitsY() [4/4]

void g4p_controls.GSlider2D.setLimitsY	(	int	start,
		int	end
	)

Y (vert) limits Sets the range of values to be returned. This method will assume that you want to set the valueType to INTEGER

Parameters

start	the X start value of the range
end	the X end value of the range

◆ setNumberFormat() [1/2]

void g4p_controls.GSlider2D.setNumberFormat ( int numberFormat )

Set the numberFormat and precision in one go.
Valid number formats are INTEGER, DECIMAL, EXPONENT
Precision must be ≥ 1 and is ignored for INTEGER.

Parameters

numberFormat G4P.INTEGER, G4P.DECIMAL or G4P.EXPONENT

◆ setNumberFormat() [2/2]

void g4p_controls.GSlider2D.setNumberFormat	(	int	numberFormat,
		int	precision
	)

Set the numberFormat and precision in one go.
Valid number formats are INTEGER, DECIMAL, EXPONENT
Precision must be ≥ 1 and is ignored for INTEGER.

Parameters

numberFormat	G4P.INTEGER, G4P.DECIMAL orG4P. EXPONENT
precision	must be ≥ 1

◆ setPrecision()

void g4p_controls.GSlider2D.setPrecision ( int nd )

For DECIMAL values this sets the number of decimal places to be displayed.

Parameters

nd	must be ≥ 1 otherwise will use 1

◆ setValueX()

void g4p_controls.GSlider2D.setValueX ( float v )

Set the X (horz) value for the slider.
The value supplied will be constrained to the current limits.

Parameters

v	the new value

◆ setValueXY()

void g4p_controls.GSlider2D.setValueXY	(	float	vx,
		float	vy
	)

Set both the XY values for the slider.
The values supplied will be constrained to the appropriate current limits.

Parameters

vx	the new X (horz) value
vy	the new Y (vert) value

◆ setValueY()

void g4p_controls.GSlider2D.setValueY ( float v )

Set the Y (vert) value for the slider.
The value supplied will be constrained to the current limits.

Parameters

v	the new value

◆ setXlimits()

void g4p_controls.GSlider2D.setXlimits	(	int	start,
		int	end
	)

X (horz) limits Sets the range of values to be returned. This method will assume that you want to set the valueType to INTEGER

Parameters

start	the start value of the range
end	the end value of the range

◆ updateBuffer()

void g4p_controls.GSlider2D.updateBuffer ( )

protected

Reimplemented from g4p_controls.GAbstractControl.

◆ updateDueToValueChanging()

void g4p_controls.GSlider2D.updateDueToValueChanging ( )

protected

Updates thumb hotspot due changes caused by easing

Reimplemented from g4p_controls.GValueControl2D.

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GSlider2D()

Member Function Documentation

◆ draw()

◆ getNumericDisplayString()

◆ getValueXF()

◆ getValueXI()

◆ getValueXS()

◆ getValueYF()

◆ getValueYI()

◆ getValueYS()

◆ mouseEvent()

◆ setEasing()

◆ setLimitsX() [1/3]

◆ setLimitsX() [2/3]

◆ setLimitsX() [3/3]

◆ setLimitsY() [1/4]

◆ setLimitsY() [2/4]

◆ setLimitsY() [3/4]

◆ setLimitsY() [4/4]

◆ setNumberFormat() [1/2]

◆ setNumberFormat() [2/2]

◆ setPrecision()

◆ setValueX()

◆ setValueXY()

◆ setValueY()

◆ setXlimits()

◆ updateBuffer()

◆ updateDueToValueChanging()
