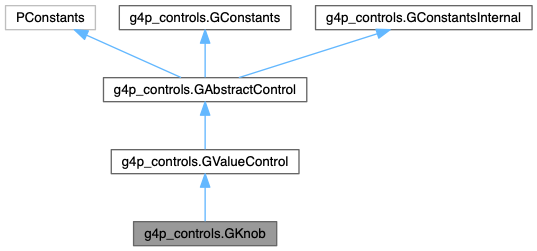

Inheritance diagram for g4p_controls.GKnob:

[legend]

Public Member Functions
void	draw ()

float	getSensitivity ()

int	getTurnMode ()

	GKnob (PApplet theApplet, float p0, float p1, float p2, float p3, float gripAmount)

boolean	isIncludeOverBezel ()

boolean	isOverArcOnly ()

boolean	isShowArcOnly ()

boolean	isShowTrack ()

void	mouseEvent (MouseEvent event)

void	setArcPolicy (boolean over_arc_only, boolean draw_arc_only, boolean overfullsize)

void	setGripAmount (float gripAmount)

void	setIncludeOverBezel (boolean overBezel)

void	setOverArcOnly (boolean arcOnly)

void	setSensitivity (float sensitivity)

void	setShowArcOnly (boolean arcOnly)

void	setShowTrack (boolean showTrack)

void	setTurnMode (int mode)

void	setTurnRange (float start, float end)

void	setValue (float v)

Public Member Functions inherited from g4p_controls.GValueControl
float	getEasing ()

float	getEndLimit ()

int	getNbrTicks ()

int	getPrecision ()

float	getStartLimit ()

String	getUnit ()

float	getValueF ()

int	getValueI ()

String	getValueS ()

int	getValueType ()

	GValueControl (PApplet theApplet, float p0, float p1, float p2, float p3)

boolean	isShowLimits ()

boolean	isShowTicks ()

boolean	isShowValue ()

boolean	isStickToTicks ()

void	pre ()

void	setEasing (float easeBy)

void	setLimits (float initValue, float start, float end)

void	setLimits (float start, float end)

void	setLimits (int initValue, int start, int end)

void	setLimits (int start, int end)

void	setNbrTicks (int noOfTicks)

void	setNumberFormat (int numberFormat)

void	setNumberFormat (int numberFormat, int precision)

void	setNumberFormat (int numberFormat, int precision, String unit)

void	setPrecision (int nd)

void	setShowDecor (boolean opaque, boolean ticks, boolean value, boolean limits)

void	setShowLimits (boolean showLimits)

void	setShowTicks (boolean showTicks)

void	setShowValue (boolean showValue)

void	setStickToTicks (boolean stickToTicks)

void	setUnits (String units)

void	setValue (float v)

Public Member Functions inherited from g4p_controls.GAbstractControl
void	addControl (GAbstractControl c)

void	addControl (GAbstractControl c, float x, float y)

void	addControl (GAbstractControl c, float x, float y, float angle)

void	addControls (GAbstractControl... controls)

void	addEventHandler (Object obj, String methodName)

void	dispose ()

void	draw ()

void	forceBufferUpdate ()

	GAbstractControl (PApplet theApplet)

	GAbstractControl (PApplet theApplet, float p0, float p1)

	GAbstractControl (PApplet theApplet, float p0, float p1, float p2, float p3)

int	getAlpha ()

int	getCursorOver ()

float	getCX ()

float	getCY ()

float	getHeight ()

int	getLocalColorScheme ()

PApplet	getPApplet ()

GAbstractControl	getParent ()

float	getRotation ()

PGraphics	getSnapshot ()

GToolTip	getTip ()

float	getWidth ()

float	getX ()

float	getY ()

boolean	hasFocus ()

boolean	isDragging ()

boolean	isEnabled ()

boolean	isOpaque ()

boolean	isVisible ()

void	keyEvent (KeyEvent e)

void	mouseEvent (MouseEvent event)

void	moveTo (float px, float py)

void	moveTo (float px, float py, GControlMode mode)

void	post ()

void	pre ()

void	removeTip ()

boolean	saveSnapshot ()

boolean	saveSnapshot (String filename)

void	setAlpha (int alpha)

void	setAlpha (int alpha, boolean includeChildren)

void	setCursorOver (int cursorOver)

void	setEnabled (boolean enable)

void	setFocus (boolean focus)

void	setLocalColor (int colorNo, int color)

void	setLocalColorScheme (int cs)

void	setLocalColorScheme (int cs, boolean includeChildren)

void	setOpaque (boolean opaque)

void	setRotation (float angle)

void	setRotation (float angle, GControlMode mode)

void	setTip (GToolTip tt, float offset, float angle)

void	setTip (GToolTip tt, GAlign ax, GAlign ay, float gap)

void	setTip (String text, float offset, float angle)

void	setTip (String text, GAlign ax, GAlign ay, float gap)

void	setTipDisplayTime (long msecs)

void	setTipEnabled (boolean enable)

void	setTipHorz (boolean level)

void	setTipPos (float radius, float ang)

void	setTipPos (GAlign ax, GAlign ay, float gap)

void	setTipText (String text)

void	setVisible (boolean visible)

String	toString ()

Protected Member Functions
float	calcAngletoValue (float a)

float	calcRealAngleFromXY (float px, float py)

void	calculateHotSpot ()

float	constrain360 (float a)

float	constrainToTurnRange (float a)

float	getAngleFromUser (float px, float py)

boolean	isInTurnRange (float a)

float	scaleValueToAngle (float v)

void	updateBuffer ()

Protected Member Functions inherited from g4p_controls.GValueControl
float	calcParametricTarget (float pt)

float	findNearestTickValueTo (float p)

String	getNumericDisplayString (float number)

void	setEpsilon ()

void	updateDueToValueChanging ()

Protected Member Functions inherited from g4p_controls.GAbstractControl
void	addControlImpl (GAbstractControl c, float x, float y, float angle)

void	addToParent (GAbstractControl p)

void	calcTransformedOrigin (float px, float py)

boolean	controlSupportsToolTips ()

void	createEventHandler (Object handlerObj, String methodName, Class[] param_classes, String[] param_names)

void	drawChildren ()

void	fireEvent (Object... objects)

int	focusObjectZ ()

PGraphics	getBuffer ()

int	getCurrHotSpot ()

AffineTransform	getTransform (AffineTransform aff)

void	hideTip ()

boolean	isAvailable ()

boolean	isDisplayable (int ascii)

boolean	isSuitableForGroupControl (GAbstractControl control)

void	loseFocus (GAbstractControl grabber)

void	makeBuffer ()

void	manageToolTip ()

void	resize (int w, int h)

void	resize (int w, int h, GControlMode mode)

void	setAvailable (boolean avail)

void	setZ (int parentZ)

void	showTip ()

void	takeFocus ()

void	updateBuffer ()

int	whichHotSpot (float px, float py)

Protected Attributes
float	angleTarget

float	bezelRadius

float	bezelWidth

boolean	drawArcOnly = false

float	endAng = 70

float	gripRadius

float	lastAngleTarget

float	lastMouseAngle

int	mode = CTRL_HORIZONTAL

float	mouseAngle

boolean	mouseOverArcOnly = false

boolean	overIncludesBezel = true

float	sensitivity = 1.0f

boolean	showTrack = true

float	startAng = 110

float	startMouseX

float	startMouseY

Protected Attributes inherited from g4p_controls.GValueControl
float	easing = 1.0f

float	endLimit = 1

boolean	limitsInvalid = true

int	nbrTicks = 2

float	offset

float	parametricPos = 0.5f

float	parametricTarget = 0.5f

int	precision = 2

boolean	showLimits = false

boolean	showTicks = false

boolean	showValue = false

StyledString	ssEndLimit

StyledString	ssStartLimit

StyledString	ssValue

float	startLimit = 0

boolean	stickToTicks = false

String	unit = ""

boolean	valueInvalid = true

int	valueType = DECIMAL

float	wheelDelta = WHEEL_DELTA

Protected Attributes inherited from g4p_controls.GAbstractControl
boolean	allowChildren = true

boolean	allowToolTips = true

int	alphaLevel = G4P.globalAlpha

boolean	available = true

PGraphicsJava2D	buffer = null

boolean	bufferInvalid = true

LinkedList< GAbstractControl >	children = null

int	currSpot = -1

int	cursorOver = HAND

float	cx

float	cy

boolean	dragging = false

boolean	enabled = true

Method	eventHandlerMethod = null

String	eventHandlerMethodName

Object	eventHandlerObject = null

float	halfHeight

float	halfWidth

float	height

HotSpot[]	hotspots = null

int	lastSpot = -1

int	localColorScheme = G4P.globalColorScheme

boolean	opaque = false

float	ox

float	oy

Color[]	palette = null

GAbstractControl	parent = null

int	registeredMethods = 0

float	rotAngle

double[]	temp = new double[2]

GToolTip	tip = null

boolean	visible = true

float	width

PApplet	winApp

float	x

float	y

int	z = Z_STICKY

Additional Inherited Members
Public Attributes inherited from g4p_controls.GAbstractControl
String	tag = ""

int	tagNo

Public Attributes inherited from g4p_controls.GConstants
int	ALPHA_BLOCK = 128

int	ALPHA_PICK = 48

TextAttribute	BACKGROUND = TextAttribute.BACKGROUND

int	BLUE_SCHEME = 6

int	BOLD = Font.BOLD

int	CANCEL = JOptionPane.CANCEL_OPTION

int	CLOSE_WINDOW = 0x00000f02

int	CLOSED = JOptionPane.CLOSED_OPTION

int	CTRL_ANGULAR = 0x00000501

int	CTRL_HORIZONTAL = 0x00000502

int	CTRL_VERTICAL = 0x00000503

int	CYAN_SCHEME = 5

int	DECIMAL = 1

char	END = java.awt.event.KeyEvent.VK_END

int	ERROR_MESSAGE = JOptionPane.ERROR_MESSAGE

int	EXIT_APP = 0x00000f01

int	EXPONENT = 2

TextAttribute	FAMILY = TextAttribute.FAMILY

TextAttribute	FOREGROUND = TextAttribute.FOREGROUND

int	FORWARD = 1

int	GOLD_SCHEME = 7

int	GREEN_SCHEME = 1

int	HIDE_WINDOW = 0x00000f04

char	HOME = java.awt.event.KeyEvent.VK_HOME

int	INFO_MESSAGE = JOptionPane.INFORMATION_MESSAGE

int	INTEGER = 0

int	ITALIC = Font.ITALIC

int	KEEP_OPEN = 0x00000f03

int	NO = JOptionPane.NO_OPTION

int	OK = JOptionPane.OK_OPTION

int	OK_CANCEL = JOptionPane.OK_CANCEL_OPTION

int	ORANGE_SCHEME = 4

int	ORIENT_LEFT = -1

int	ORIENT_RIGHT = 1

int	ORIENT_TRACK = 0

int	PLAIN = Font.PLAIN

int	PLAIN_MESSAGE = JOptionPane.PLAIN_MESSAGE

TextAttribute	POSTURE = TextAttribute.POSTURE

Float	POSTURE_OBLIQUE = new Float(0.20f)

Float	POSTURE_REGULAR = new Float(0.0f)

int	PURPLE_SCHEME = 3

int	QUERY_MESSAGE = JOptionPane.QUESTION_MESSAGE

int	RED_SCHEME = 0

int	REVERSE = -1

int	SCHEME_10 = 10

int	SCHEME_11 = 11

int	SCHEME_12 = 12

int	SCHEME_13 = 13

int	SCHEME_14 = 14

int	SCHEME_15 = 15

int	SCHEME_8 = 8

int	SCHEME_9 = 9

int	SCROLLBARS_AUTOHIDE = 0x1000

int	SCROLLBARS_BOTH = 0x0003

int	SCROLLBARS_HORIZONTAL_ONLY = 0x0002

int	SCROLLBARS_NONE = 0x0000

int	SCROLLBARS_VERTICAL_ONLY = 0x0001

TextAttribute	SIZE = TextAttribute.SIZE

TextAttribute	STRIKETHROUGH = TextAttribute.STRIKETHROUGH

Boolean	STRIKETHROUGH_OFF = new Boolean(false)

Boolean	STRIKETHROUGH_ON = new Boolean(true)

TextAttribute	SUPERSCRIPT = TextAttribute.SUPERSCRIPT

Integer	SUPERSCRIPT_OFF = new Integer(0)

Integer	SUPERSCRIPT_SUB = new Integer(-1)

Integer	SUPERSCRIPT_SUPER = new Integer(1)

int	UNDEFINED = Integer.MAX_VALUE

TextAttribute	UNDERLINE = TextAttribute.UNDERLINE

int	UNDERLINE_OFF = Integer.valueOf(-1)

int	UNDERLINE_ON = TextAttribute.UNDERLINE_ON

int	USER_COL_SCHEME = 0x00010102

int	WARN_MESSAGE = JOptionPane.WARNING_MESSAGE

TextAttribute	WEIGHT = TextAttribute.WEIGHT

Float	WEIGHT_BOLD = new Float(2.0f)

Float	WEIGHT_DEMIBOLD = new Float(1.75f)

Float	WEIGHT_DEMILIGHT = new Float(0.875f)

Float	WEIGHT_EXTRA_LIGHT = new Float(0.5f)

Float	WEIGHT_EXTRABOLD = new Float(2.5f)

Float	WEIGHT_HEAVY = new Float(2.25f)

Float	WEIGHT_LIGHT = new Float(0.75f)

Float	WEIGHT_MEDIUM = new Float(1.5f)

Float	WEIGHT_REGULAR = new Float(1.0f)

Float	WEIGHT_SEMIBOLD = new Float(1.25f)

Float	WEIGHT_ULTRABOLD = new Float(2.75f)

TextAttribute	WIDTH = TextAttribute.WIDTH

Float	WIDTH_CONDENSED = new Float(0.75f)

Float	WIDTH_EXTENDED = new Float(1.5f)

Float	WIDTH_REGULAR = new Float(1.0f)

Float	WIDTH_SEMI_CONDENSED = new Float(0.875f)

Float	WIDTH_SEMI_EXTENDED = new Float(1.25f)

int	X4 = 1

int	X8 = 2

int	YELLOW_SCHEME = 2

int	YES = JOptionPane.YES_OPTION

int	YES_NO = JOptionPane.YES_NO_OPTION

int	YES_NO_CANCEL = JOptionPane.YES_NO_CANCEL_OPTION

Static Protected Attributes inherited from g4p_controls.GAbstractControl
static GAbstractControl	controlToTakeFocus = null

static GAbstractControl	cursorIsOver

static float	epsilon = 0.001f

static GAbstractControl	focusIsWith = null

Detailed Description

The provides an extremely configurable GUI knob controller. GKnob inherits from GValueControl so you should read the documentation for that class as it also applies to GKnob.

Configurable options
Knob size but it must be circular
Start and end of rotation arc.
Bezel width with tick marks
User defined value limits (i.e. the range of values returned

Range of values associated with rotating the knob
Rotation is controlled by mouse movement - 3 modes available
(a) angular - drag round knob center
(b) horizontal - drag left or right
(c) vertical - drag up or down
User can specify mouse sensitivity for modes (b) and (c) Use can specify easing to give smoother rotation

Note: Angles are measured clockwise starting in the positive x direction i.e.

        270
         |
   180 --+-- 0
         |
         90

Author: Peter Lager

Constructor & Destructor Documentation

◆ GKnob()

g4p_controls.GKnob.GKnob	(	PApplet	theApplet,
		float	p0,
		float	p1,
		float	p2,
		float	p3,
		float	gripAmount
	)

Will create the a circular knob control that fits the rectangle define by the values passed as parameters.
The knob has two zones the outer bezel and the inner gripper. The radius of the outer bezel is calculated from

bezel radius = min(width, height)/2 - 2

The radius of the inner griper radius is calculated from the bezel radius and the last parameter.

grip radius = bezel radiius * gripAmount

The gripAmount should be in te range 0.0 to 1.0 inclusive. The actual value will be constrained to that range.

Parameters

theApplet	the main sketch or GWindow control for this control
p0	x position based on control mode
p1	y position based on control mode
p2	x position or width based on control mode
p3	y position or height based on control mode
gripAmount	must be ≥0.0 and ≤1.0

Member Function Documentation

◆ calcAngletoValue()

float g4p_controls.GKnob.calcAngletoValue ( float a )

protected

Calculates the knob angle based on the normalised value.

Parameters

a

◆ calcRealAngleFromXY()

float g4p_controls.GKnob.calcRealAngleFromXY	(	float	px,
		float	py
	)

protected

Calculate the angle to the knob centre making sure it is in the range 0-360

Parameters

px
py

Returns: the angle from the knob centre to the specified point.

◆ constrain360()

float g4p_controls.GKnob.constrain360 ( float a )

protected

Accept an angle and constrain it to the range 0-360

Parameters

a

Returns: the constrained angle

◆ constrainToTurnRange()

float g4p_controls.GKnob.constrainToTurnRange ( float a )

protected

Accept an angle and constrain it to the knob angle range.

Parameters

a

Returns: the constrained angle

◆ draw()

void g4p_controls.GKnob.draw ( )

Reimplemented from g4p_controls.GAbstractControl.

◆ getAngleFromUser()

float g4p_controls.GKnob.getAngleFromUser	(	float	px,
		float	py
	)

protected

Calculates the 'angle' from the current mouse position based on the type of 'controller' set.

Parameters

px	the distance from the knob centre in the x direction
py	the distance from the knob centre in the y direction

Returns: the unconstrained angle

◆ getSensitivity()

float g4p_controls.GKnob.getSensitivity ( )

This gets the sensitivity to be used in modes CTRL_HORIZONTAL and CTRL_VERTICAL

Returns: the sensitivity

◆ getTurnMode()

int g4p_controls.GKnob.getTurnMode ( )

Get the current mouse controller mode possible values are
GKnob.CTRL_ANGULAR or GKnob.CTRL_HORIZONTAL) orGKnob.CTRL_VERTICAL

Returns: the mode

◆ isIncludeOverBezel()

boolean g4p_controls.GKnob.isIncludeOverBezel ( )

Is the bezel included when considering when the mouse is over.

Returns: true if included.

◆ isInTurnRange()

boolean g4p_controls.GKnob.isInTurnRange ( float a )

protected

Determines whether an angle is within the knob rotation range.

Parameters

a	the angle in degrees

Returns: true is angle is within rotation range else false

◆ isOverArcOnly()

boolean g4p_controls.GKnob.isOverArcOnly ( )

Does the mouse only respond when over the arc?

Returns: true = yes

◆ isShowArcOnly()

boolean g4p_controls.GKnob.isShowArcOnly ( )

Are we showing arc only?

Returns: true = yes

◆ isShowTrack()

boolean g4p_controls.GKnob.isShowTrack ( )

Returns: true if the value track bar is visible else false.

◆ mouseEvent()

void g4p_controls.GKnob.mouseEvent ( MouseEvent event )

Reimplemented from g4p_controls.GAbstractControl.

◆ scaleValueToAngle()

float g4p_controls.GKnob.scaleValueToAngle ( float v )

protected

For a particular normalised value calculate the angle (degrees)

Parameters

v

Returns: the needle angle for the given value

◆ setArcPolicy()

void g4p_controls.GKnob.setArcPolicy	(	boolean	over_arc_only,
		boolean	draw_arc_only,
		boolean	overfullsize
	)

Convenience method to set both the show and the mouse over arc only properties for this knob

Parameters

over_arc_only	mouse over arc only?
draw_arc_only	draw arc only?
overfullsize	include bezel in mouse over calculations?

◆ setGripAmount()

void g4p_controls.GKnob.setGripAmount ( float gripAmount )

The radius of the inner griper radius is calculated from the bezel radius and the parameter gripAmount using

grip radius = bezel radiius * gripAmount

The gripAmount should be in te range 0.0 to 1.0 inclusive. The actual value will be constrained to that range.

Parameters

gripAmount must be ≥0.0 and ≤1.0

◆ setIncludeOverBezel()

void g4p_controls.GKnob.setIncludeOverBezel ( boolean overBezel )

Whether to include the bezel when deciding when the mouse is over.

Parameters

overBezel true if bezel inclded.

◆ setOverArcOnly()

void g4p_controls.GKnob.setOverArcOnly ( boolean arcOnly )

Decides when the knob will respond to the mouse buttons. If set to true it will only respond when over the arc made by the start and end angles. If false it will be the full circle.

Parameters

arcOnly determines which part of the control responds to the mouse

◆ setSensitivity()

void g4p_controls.GKnob.setSensitivity ( float sensitivity )

This gets the sensitivity to be used in modes CTRL_HORIZONTAL and CTRL_VERTICAL
A value of 1 is 1 degree per pixel and a value of 2 is 2 degrees per pixel.

Parameters

sensitivity the sensitivity to set

◆ setShowArcOnly()

void g4p_controls.GKnob.setShowArcOnly ( boolean arcOnly )

This will decide whether the knob is draw as a full circle or as an arc.

Parameters

arcOnly true for arc only

◆ setShowTrack()

void g4p_controls.GKnob.setShowTrack ( boolean showTrack )

Whether or not to show the circular progress bar.

Parameters

showTrack true for visible

◆ setTurnMode()

void g4p_controls.GKnob.setTurnMode ( int mode )

Set the mouse control mode to use, acceptable values are
GKnob.CTRL_ANGULAR or GKnob.CTRL_HORIZONTAL) orGKnob.CTRL_VERTICAL any other value will be ignored.

Parameters

mode	the mode to set

◆ setTurnRange()

void g4p_controls.GKnob.setTurnRange	(	float	start,
		float	end
	)

Set the limits for the range of valid rotation angles for the knob.

Parameters

start	the range start angle in degrees
end	the range end angle in degrees

◆ setValue()

void g4p_controls.GKnob.setValue ( float v )

Set the value for the slider.
The user must ensure that the value is valid for the slider range.

Parameters

v	the new value to be used.

Reimplemented from g4p_controls.GValueControl.

◆ updateBuffer()

void g4p_controls.GKnob.updateBuffer ( )

protected

Reimplemented from g4p_controls.GAbstractControl.

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GKnob()

Member Function Documentation

◆ calcAngletoValue()

◆ calcRealAngleFromXY()

◆ constrain360()

◆ constrainToTurnRange()

◆ draw()

◆ getAngleFromUser()

◆ getSensitivity()

◆ getTurnMode()

◆ isIncludeOverBezel()

◆ isInTurnRange()

◆ isOverArcOnly()

◆ isShowArcOnly()

◆ isShowTrack()

◆ mouseEvent()

◆ scaleValueToAngle()

◆ setArcPolicy()

◆ setGripAmount()

◆ setIncludeOverBezel()

◆ setOverArcOnly()

◆ setSensitivity()

◆ setShowArcOnly()

◆ setShowTrack()

◆ setTurnMode()

◆ setTurnRange()

◆ setValue()

◆ updateBuffer()
