PVector[] | coords |
| |
|
UV[] | uvNorm |
| |
|
float | radiusX |
| |
|
int | nbrSegs |
| |
|
| static PVector[] | rotateCW (PVector[] vectors) |
| |
| static PVector[] | rotateCCW (PVector[] vectors) |
| |
| static PVector[] | flipV (PVector[] vectors) |
| |
| static PVector[] | flipH (PVector[] vectors) |
| |
|
int | WIRE = 0x00000011 |
| |
|
int | SOLID = 0x00000012 |
| |
|
int | TEXTURE = 0x00000014 |
| |
|
int | DRAWALL = WIRE | SOLID | TEXTURE |
| |
|
int | WHITE = 0xFFFFFFFF |
| |
|
int | BLACK = 0xFF000000 |
| |
|
int | GREY = 0xFFC0C0C0 |
| |
|
int | RED = 0xFFFF0000 |
| |
|
int | GREEN = 0xFF00FF00 |
| |
|
int | BLUE = 0xFF0000FF |
| |
|
int | YELLOW = 0xFFFFFF00 |
| |
|
int | PURPLE = 0xFFFF00FF |
| |
|
int | CYAN = 0xFF00FFFF |
| |
|
int | ORANGE = 0xFFFFC000 |
| |
|
int | CW = 1 |
| |
|
int | CCW = 2 |
| |
|
int | ALL = 0b11111111 |
| |
|
int | BOTTOM = 0b00000001 |
| |
|
int | TOP = 0b00000010 |
| |
|
int | FRONT = 0b00000100 |
| |
|
int | BACK = 0b00001000 |
| |
|
int | LEFT = 0b00010000 |
| |
|
int | RIGHT = 0b00100000 |
| |
|
int | BODY = 0b00000001 |
| |
|
int | END0 = 0b00000010 |
| |
|
int | END1 = 0b00000100 |
| |
|
float | ONE_DEG_T = (float) (Math.PI / 180.0) |
| |
|
PathOrthogonal | ORTHO_X = new PathOrthogonal.PathNormalX() |
| |
|
PathOrthogonal | ORTHO_Y = new PathOrthogonal.PathNormalY() |
| |
|
PathOrthogonal | ORTHO_Z = new PathOrthogonal.PathNormalZ() |
| |
|
PathOrthogonal | ORTHO_A = new PathOrthogonal.PathNormalAMC() |
| |
|
TransformUV | ROT_0 = TransformUV.ROT0 |
| |
|
TransformUV | ROT_90 = TransformUV.ROT90 |
| |
|
TransformUV | ROT_180 = TransformUV.ROT180 |
| |
|
TransformUV | ROT_270 = TransformUV.ROT270 |
| |
|
TransformUV | FLIP_H = TransformUV.FLIPH |
| |
|
TransformUV | FLIP_V = TransformUV.FLIPV |
| |
|
Rotation | ROTATION_ZERO = new Rotation() |
| |
|
int | T_BOX = 0x1001 |
| |
|
int | T_DOME = 0x1002 |
| |
|
int | T_CONE = 0x1003 |
| |
|
int | T_ELLIPSOID = 0x1004 |
| |
|
int | T_EXTRUSION = 0x1005 |
| |
|
int | T_LATHESTOCK = 0x1006 |
| |
|
int | T_MD2 = 0x1007 |
| |
|
int | T_SKYBOX = 0x1008 |
| |
|
int | T_SKYDOME = 0x1009 |
| |
|
int | T_TERRAIN = 0x100A |
| |
|
int | T_TUBE = 0x100B |
| |
|
int | C_LATHESURFACE = 0x2001 |
| |
|
int | C_OVAL = 0x2002 |
| |
|
int | C_POLYGON = 0x2003 |
| |
|
int | P_BCURVE2D = 0x3001 |
| |
|
int | P_BCURVE3D = 0x3002 |
| |
|
int | P_BSPLINE2D = 0x3003 |
| |
|
int | P_BSPLINE3D = 0x3004 |
| |
|
int | P_LINEAR = 0x3005 |
| |
|
int | P_LISSAJOUS = 0x3006 |
| |
|
int | P_RING = 0x3007 |
| |
|
int | P_SPIRAL = 0x3008 |
| |
This class represents a circular or elliptical cross-section for a Tube shape.
- Author
- Peter Lager
| shapes3d.contour.Oval.Oval |
( |
float |
radius, |
|
|
int |
nbrSegs |
|
) |
| |
Create a circular cross-section.
The more segments you choose the smoother the tube surface.
- Parameters
-
| radius | the circle radius |
| nbrSegs | number of segments |
| shapes3d.contour.Oval.Oval |
( |
float |
radiusX, |
|
|
float |
radiusY, |
|
|
int |
nbrSegs |
|
) |
| |
Create a elliptical cross-section.
The more segments you choose the smoother the tube surface.
- Parameters
-
| radiusX | radius for one axis of the ellipse |
| radiusY | radius for the other axis of the ellipse |
| nbrSegs | the number of segments making up the Oval |
| void shapes3d.contour.Oval.calcSection |
( |
| ) |
|
Create un-transformed coordinates for the Oval [0] oval center [1] > [nbrSegs] closed loop in CCW order
| PVector [] shapes3d.contour.Oval.coords |
( |
| ) |
|
- Returns
- the [x, y, 0] coordinates for the vertices defining this oval
| Oval shapes3d.contour.Oval.mirror |
( |
| ) |
|
- Returns
- the Oval that is a mirror of this one.
| UV [] shapes3d.contour.Oval.uv |
( |
| ) |
|
- Returns
- the texture coordinates for this Oval
The documentation for this class was generated from the following file:
- /Users/peter/git/shapes3d-repos/Shapes 3D/src/shapes3d/contour/Oval.java

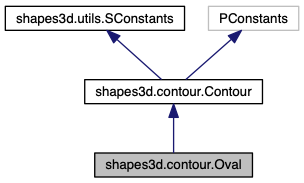

Public Member Functions inherited from shapes3d.contour.Contour
