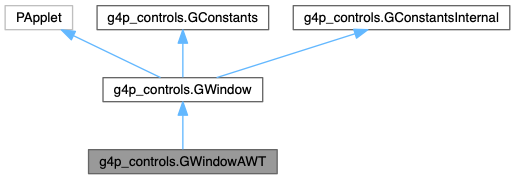

Inheritance diagram for g4p_controls.GWindowAWT:

[legend]

Public Member Functions
void	draw ()

PVector	getPosition (PVector pos)

String	getTitle ()

boolean	isVisible ()

void	setActionOnClose (int action)

void	setAlwaysOnTop (boolean ontop)

void	setLocation (int x, int y)

void	setTitle (String title)

void	setVisible (boolean visible)

boolean	usesGL ()

Public Member Functions inherited from g4p_controls.GWindow
void	addData (GWinData data)

void	addDrawHandler (Object obj, String methodName)

void	addKeyHandler (Object obj, String methodName)

void	addMouseHandler (Object obj, String methodName)

void	addOnCloseHandler (Object obj, String methodName)

void	addPostHandler (Object obj, String methodName)

void	addPreHandler (Object obj, String methodName)

void	close ()

void	draw ()

void	forceClose ()

abstract PVector	getPosition (PVector pos)

abstract String	getTitle ()

abstract boolean	isVisible ()

void	keyEvent (KeyEvent event)

void	mouseEvent (MouseEvent event)

void	performCloseAction ()

void	post ()

void	pre ()

abstract void	setActionOnClose (int action)

abstract void	setAlwaysOnTop (boolean ontop)

abstract void	setLocation (int x, int y)

void	settings ()

abstract void	setTitle (String title)

void	setup ()

abstract void	setVisible (boolean visible)

abstract boolean	usesGL ()

Protected Member Functions
void	fireCloseWindowEvent ()

JFrame	getCanvas ()

	GWindowAWT (String title, int w, int h)

void	initListeners ()

Protected Member Functions inherited from g4p_controls.GWindow
void	addToWindow (GAbstractControl control)

abstract void	fireCloseWindowEvent ()

	GWindow (String title, int w, int h)

abstract void	initListeners ()

void	prepareWindowForClosure ()

void	registerMethods ()

void	removeFromWindow (GAbstractControl control)

void	unregisterMethods ()

Additional Inherited Members
Static Public Member Functions inherited from g4p_controls.GWindow
static GWindow	getWindow (PApplet app, String title, int px, int py, int w, int h, String renderer)

Public Attributes inherited from g4p_controls.GWindow
GWinData	data

String	tag

int	tagNo

LinkedList< GAbstractControl >	toAdd = new LinkedList<GAbstractControl>()

LinkedList< GAbstractControl >	toRemove = new LinkedList<GAbstractControl>()

LinkedList< GAbstractControl >	windowControls = new LinkedList<GAbstractControl>()

Public Attributes inherited from g4p_controls.GConstants
int	ALPHA_BLOCK = 128

int	ALPHA_PICK = 48

TextAttribute	BACKGROUND = TextAttribute.BACKGROUND

int	BLUE_SCHEME = 6

int	BOLD = Font.BOLD

int	CANCEL = JOptionPane.CANCEL_OPTION

int	CLOSE_WINDOW = 0x00000f02

int	CLOSED = JOptionPane.CLOSED_OPTION

int	CTRL_ANGULAR = 0x00000501

int	CTRL_HORIZONTAL = 0x00000502

int	CTRL_VERTICAL = 0x00000503

int	CYAN_SCHEME = 5

int	DECIMAL = 1

char	END = java.awt.event.KeyEvent.VK_END

int	ERROR_MESSAGE = JOptionPane.ERROR_MESSAGE

int	EXIT_APP = 0x00000f01

int	EXPONENT = 2

TextAttribute	FAMILY = TextAttribute.FAMILY

TextAttribute	FOREGROUND = TextAttribute.FOREGROUND

int	FORWARD = 1

int	GOLD_SCHEME = 7

int	GREEN_SCHEME = 1

int	HIDE_WINDOW = 0x00000f04

char	HOME = java.awt.event.KeyEvent.VK_HOME

int	INFO_MESSAGE = JOptionPane.INFORMATION_MESSAGE

int	INTEGER = 0

int	ITALIC = Font.ITALIC

int	KEEP_OPEN = 0x00000f03

int	NO = JOptionPane.NO_OPTION

int	OK = JOptionPane.OK_OPTION

int	OK_CANCEL = JOptionPane.OK_CANCEL_OPTION

int	ORANGE_SCHEME = 4

int	ORIENT_LEFT = -1

int	ORIENT_RIGHT = 1

int	ORIENT_TRACK = 0

int	PLAIN = Font.PLAIN

int	PLAIN_MESSAGE = JOptionPane.PLAIN_MESSAGE

TextAttribute	POSTURE = TextAttribute.POSTURE

Float	POSTURE_OBLIQUE = new Float(0.20f)

Float	POSTURE_REGULAR = new Float(0.0f)

int	PURPLE_SCHEME = 3

int	QUERY_MESSAGE = JOptionPane.QUESTION_MESSAGE

int	RED_SCHEME = 0

int	REVERSE = -1

int	SCHEME_10 = 10

int	SCHEME_11 = 11

int	SCHEME_12 = 12

int	SCHEME_13 = 13

int	SCHEME_14 = 14

int	SCHEME_15 = 15

int	SCHEME_8 = 8

int	SCHEME_9 = 9

int	SCROLLBARS_AUTOHIDE = 0x1000

int	SCROLLBARS_BOTH = 0x0003

int	SCROLLBARS_HORIZONTAL_ONLY = 0x0002

int	SCROLLBARS_NONE = 0x0000

int	SCROLLBARS_VERTICAL_ONLY = 0x0001

TextAttribute	SIZE = TextAttribute.SIZE

TextAttribute	STRIKETHROUGH = TextAttribute.STRIKETHROUGH

Boolean	STRIKETHROUGH_OFF = new Boolean(false)

Boolean	STRIKETHROUGH_ON = new Boolean(true)

TextAttribute	SUPERSCRIPT = TextAttribute.SUPERSCRIPT

Integer	SUPERSCRIPT_OFF = new Integer(0)

Integer	SUPERSCRIPT_SUB = new Integer(-1)

Integer	SUPERSCRIPT_SUPER = new Integer(1)

int	UNDEFINED = Integer.MAX_VALUE

TextAttribute	UNDERLINE = TextAttribute.UNDERLINE

int	UNDERLINE_OFF = Integer.valueOf(-1)

int	UNDERLINE_ON = TextAttribute.UNDERLINE_ON

int	USER_COL_SCHEME = 0x00010102

int	WARN_MESSAGE = JOptionPane.WARNING_MESSAGE

TextAttribute	WEIGHT = TextAttribute.WEIGHT

Float	WEIGHT_BOLD = new Float(2.0f)

Float	WEIGHT_DEMIBOLD = new Float(1.75f)

Float	WEIGHT_DEMILIGHT = new Float(0.875f)

Float	WEIGHT_EXTRA_LIGHT = new Float(0.5f)

Float	WEIGHT_EXTRABOLD = new Float(2.5f)

Float	WEIGHT_HEAVY = new Float(2.25f)

Float	WEIGHT_LIGHT = new Float(0.75f)

Float	WEIGHT_MEDIUM = new Float(1.5f)

Float	WEIGHT_REGULAR = new Float(1.0f)

Float	WEIGHT_SEMIBOLD = new Float(1.25f)

Float	WEIGHT_ULTRABOLD = new Float(2.75f)

TextAttribute	WIDTH = TextAttribute.WIDTH

Float	WIDTH_CONDENSED = new Float(0.75f)

Float	WIDTH_EXTENDED = new Float(1.5f)

Float	WIDTH_REGULAR = new Float(1.0f)

Float	WIDTH_SEMI_CONDENSED = new Float(0.875f)

Float	WIDTH_SEMI_EXTENDED = new Float(1.25f)

int	X4 = 1

int	X8 = 2

int	YELLOW_SCHEME = 2

int	YES = JOptionPane.YES_OPTION

int	YES_NO = JOptionPane.YES_NO_OPTION

int	YES_NO_CANCEL = JOptionPane.YES_NO_CANCEL_OPTION

Protected Attributes inherited from g4p_controls.GWindow
int	actionOnClose = KEEP_OPEN

String	closeHandlerMethodName

Object	closeHandlerObject = null

Method	closetHandlerMethod = null

Method	drawHandlerMethod = null

String	drawHandlerMethodName

Object	drawHandlerObject = null

int	h

boolean	is3D = false

Method	keyHandlerMethod = null

String	keyHandlerMethodName

Object	keyHandlerObject = null

Method	mouseHandlerMethod = null

String	mouseHandlerMethodName

Object	mouseHandlerObject = null

Method	postHandlerMethod = null

String	postHandlerMethodName

Object	postHandlerObject = null

Method	preHandlerMethod = null

String	preHandlerMethodName

Object	preHandlerObject = null

boolean	preparedForClosure = false

String	renderer_type

String	title

int	w

Detailed Description

Class for independent windows using the JAVA2D renderer. These can be used to hold G4P GUI components or used for drawing or both combined.

A number of examples are included in the library and more info can be found at www.lagers.org.uk

Updated for Processing V3

Author: Peter Lager

Member Function Documentation

◆ draw()

void g4p_controls.GWindowAWT.draw ( )

Execute any draw handler for this window.

Reimplemented from g4p_controls.GWindow.

◆ fireCloseWindowEvent()

void g4p_controls.GWindowAWT.fireCloseWindowEvent ( )

protected

Fire a window closing event. This method will be called from a new THread, do not call directly

Reimplemented from g4p_controls.GWindow.

◆ getPosition()

PVector g4p_controls.GWindowAWT.getPosition ( PVector pos )

Get the window position

Reimplemented from g4p_controls.GWindow.

◆ getTitle()

String g4p_controls.GWindowAWT.getTitle ( )

Get the window title

Reimplemented from g4p_controls.GWindow.

◆ initListeners()

void g4p_controls.GWindowAWT.initListeners ( )

protected

Remove all existing window listeners and add our own custom listener.

Reimplemented from g4p_controls.GWindow.

◆ isVisible()

boolean g4p_controls.GWindowAWT.isVisible ( )

Returns true if the window is visible else false

Reimplemented from g4p_controls.GWindow.

◆ setActionOnClose()

void g4p_controls.GWindowAWT.setActionOnClose ( int action )

This sets what happens when the users attempts to close the window.
There are 3 possible actions depending on the value passed.
G4P.KEEP_OPEN - ignore attempt to close window (default action),
G4P.CLOSE_WINDOW - close this window,
G4P.EXIT_APP - exit the app, this will cause all windows to close.

Parameters

action the required close action

Reimplemented from g4p_controls.GWindow.

◆ setAlwaysOnTop()

void g4p_controls.GWindowAWT.setAlwaysOnTop ( boolean ontop )

Sets whether this window should always be above other windows. If there are multiple always-on-top windows, their relative order is unspecified and platform dependent.

Parameters

ontop if true the window will always remain above other windows

Reimplemented from g4p_controls.GWindow.

◆ setLocation()

void g4p_controls.GWindowAWT.setLocation	(	int	x,
		int	y
	)

Set the windows position

Parameters

x	horizontal position of window
y	vertical position of window

Reimplemented from g4p_controls.GWindow.

◆ setTitle()

void g4p_controls.GWindowAWT.setTitle ( String title )

Set the window title

Parameters

title the window's title bar text

Reimplemented from g4p_controls.GWindow.

◆ setVisible()

void g4p_controls.GWindowAWT.setVisible ( boolean visible )

Set the windows visibility

Parameters

visible whether the window is to be visible or not

Reimplemented from g4p_controls.GWindow.

◆ usesGL()

boolean g4p_controls.GWindowAWT.usesGL ( )

Always returns false because these windows never use OpenGL

Reimplemented from g4p_controls.GWindow.
