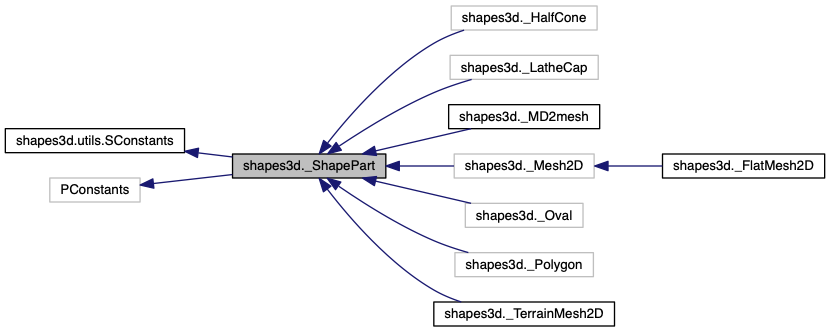

Inheritance diagram for shapes3d._ShapePart:

Public Member Functions
void	texture (PImage image)

void	movie (PApplet pApplet, PImage movie)

_ShapePart	uv (float u0, float u1, float v0, float v1)

_ShapePart	mesh (int nbrColSlices, int nbrRowSlices)

_ShapePart	uvt (TransformUV transformer)

_ShapePart	uvwrap (int wrap)

void	visible (boolean visible)

_ShapePart	fill (int fillColor)

_ShapePart	stroke (int col)

_ShapePart	strokeWeight (float weight)

_ShapePart	drawMode (int mode)

abstract void	draw (PGraphics pg)

abstract void	drawPickBuffer (PGraphics pg)

boolean	isVisible ()

float	strokeWeight ()

int	fill ()

int	stroke ()

int	drawMode ()

PImage	texture ()

Public Attributes
String	tag

Public Attributes inherited from shapes3d.utils.SConstants
int	WIRE = 0x00000011

int	SOLID = 0x00000012

int	TEXTURE = 0x00000014

int	DRAWALL = WIRE \| SOLID \| TEXTURE

int	WHITE = 0xFFFFFFFF

int	BLACK = 0xFF000000

int	GREY = 0xFFC0C0C0

int	RED = 0xFFFF0000

int	GREEN = 0xFF00FF00

int	BLUE = 0xFF0000FF

int	YELLOW = 0xFFFFFF00

int	PURPLE = 0xFFFF00FF

int	CYAN = 0xFF00FFFF

int	ORANGE = 0xFFFFC000

int	CW = 1

int	CCW = 2

int	ALL = 0b11111111

int	BOTTOM = 0b00000001

int	TOP = 0b00000010

int	FRONT = 0b00000100

int	BACK = 0b00001000

int	LEFT = 0b00010000

int	RIGHT = 0b00100000

int	BODY = 0b00000001

int	END0 = 0b00000010

int	END1 = 0b00000100

float	ONE_DEG_T = (float) (Math.PI / 180.0)

PathOrthogonal	ORTHO_X = new PathOrthogonal.PathNormalX()

PathOrthogonal	ORTHO_Y = new PathOrthogonal.PathNormalY()

PathOrthogonal	ORTHO_Z = new PathOrthogonal.PathNormalZ()

PathOrthogonal	ORTHO_A = new PathOrthogonal.PathNormalAMC()

TransformUV	ROT_0 = TransformUV.ROT0

TransformUV	ROT_90 = TransformUV.ROT90

TransformUV	ROT_180 = TransformUV.ROT180

TransformUV	ROT_270 = TransformUV.ROT270

TransformUV	FLIP_H = TransformUV.FLIPH

TransformUV	FLIP_V = TransformUV.FLIPV

Rotation	ROTATION_ZERO = new Rotation()

int	T_BOX = 0x1001

int	T_DOME = 0x1002

int	T_CONE = 0x1003

int	T_ELLIPSOID = 0x1004

int	T_EXTRUSION = 0x1005

int	T_LATHESTOCK = 0x1006

int	T_MD2 = 0x1007

int	T_SKYBOX = 0x1008

int	T_SKYDOME = 0x1009

int	T_TERRAIN = 0x100A

int	T_TUBE = 0x100B

int	C_LATHESURFACE = 0x2001

int	C_OVAL = 0x2002

int	C_POLYGON = 0x2003

int	P_BCURVE2D = 0x3001

int	P_BCURVE3D = 0x3002

int	P_BSPLINE2D = 0x3003

int	P_BSPLINE3D = 0x3004

int	P_LINEAR = 0x3005

int	P_LISSAJOUS = 0x3006

int	P_RING = 0x3007

int	P_SPIRAL = 0x3008

Protected Member Functions
	_ShapePart (int ppCol)

	_ShapePart (int ppCol, String tag)

abstract _ShapePart	applyUV ()

void	drawWhat ()

boolean	isValidDrawMode (int mode)

Protected Attributes
int	fillColor = BLUE

int	strokeColor = YELLOW

float	strokeWeight = 2.0f

int	drawMode = SOLID \| WIRE

boolean	visible = true

boolean	useSolid

boolean	useWire

boolean	useTexture

PImage	skin = null

TransformUV	transformer = TransformUV.ROT0

float	u0 = 0

float	u1 = 1

float	v0 = 0

float	v1 = 1

int	wrap = REPEAT

final int	partPickColor

Detailed Description

Some shapes can't be drawn with a single mesh, so these shapes have multiple parts. For instance a Tube has 3 parts the main curved body and the two end caps.
This class represents a single shape part. It is the parent class for all shape parts.

Author: Peter Lager

Constructor & Destructor Documentation

shapes3d._ShapePart._ShapePart ( int ppCol )

protected

Base ctor for all shape parts

Parameters

ppCol the pick color

shapes3d._ShapePart._ShapePart	(	int	ppCol,
		String	tag
	)

protected

Base ctor for all parts

Parameters

ppCol	the pick color
tag	user defined identifier.

Member Function Documentation

abstract void shapes3d._ShapePart.draw ( PGraphics pg )

pure virtual

Draw this part on to a graphics context

Parameters

pg	the graphics context

Implemented in shapes3d._MD2mesh, shapes3d._TerrainMesh2D, and shapes3d._FlatMesh2D.

_ShapePart shapes3d._ShapePart.drawMode ( int mode )

Sets the draw mode of this shape part

Parameters

mode	the drawMode to set

Returns: this shape part

int shapes3d._ShapePart.drawMode ( )

Returns: the drawMode

abstract void shapes3d._ShapePart.drawPickBuffer ( PGraphics pg )

pure virtual

Draw this part on to a graphics context

Parameters

pg	the pick buffer graphics context

Implemented in shapes3d._MD2mesh, shapes3d._TerrainMesh2D, and shapes3d._FlatMesh2D.

void shapes3d._ShapePart.drawWhat ( )

protected

Used internally to convert drawmode into 3 boolean values for the three draw modes.

_ShapePart shapes3d._ShapePart.fill ( int fillColor )

Sets the fill color of this shape part

Parameters

fillColor the fillColor to set

Returns: this shape part

int shapes3d._ShapePart.fill ( )

Returns: the fillColor

boolean shapes3d._ShapePart.isValidDrawMode ( int mode )

protected

Used internally to check the validity of an integer value as a draw mode

Returns: true if mode is a valid draw mode.

boolean shapes3d._ShapePart.isVisible ( )

Returns: true if visible

_ShapePart shapes3d._ShapePart.mesh	(	int	nbrColSlices,
		int	nbrRowSlices
	)

This provides the default implementation for shape parts which is do nothing.

Parameters

nbrColSlices	number of slices in x direction
nbrRowSlices	number of slices in direction orthogonal to x

Returns: this shape part

void shapes3d._ShapePart.movie	(	PApplet	pApplet,
		PImage	movie
	)

Apply movie as texture.

Parameters

pApplet	gives access to Processing methods/functions
movie	the movie to use as the texture

_ShapePart shapes3d._ShapePart.stroke ( int col )

Sets the stroke color of this shape part

Parameters

col	the strokeColor to set

Returns: this shape part

int shapes3d._ShapePart.stroke ( )

Returns: the strokeColor

_ShapePart shapes3d._ShapePart.strokeWeight ( float weight )

Sets the stroke weight of this shape part

Parameters

weight the strokeWeight to set

Returns: this shape part

float shapes3d._ShapePart.strokeWeight ( )

Returns: the strokeWeight

void shapes3d._ShapePart.texture ( PImage image )

Apply image as texture

Parameters

image the image to set

PImage shapes3d._ShapePart.texture ( )

Returns: the texture image

_ShapePart shapes3d._ShapePart.uv	(	float	u0,
		float	u1,
		float	v0,
		float	v1
	)

Set the texture coordinates.

Parameters

u0	horizontal left coordinate
u1	horizontal right coordinate
v0	vertical left coordinate
v1	vertical right coordinate

Returns: this shape part

_ShapePart shapes3d._ShapePart.uvt ( TransformUV transformer )

Transform the texture [uv] coordinates

Parameters

transformer the uv transformer object

Returns: this shape part

_ShapePart shapes3d._ShapePart.uvwrap ( int wrap )

set the texture wrap attribute. The parameter must be either REPEAT or CLAMP, any other value will be ignored.

Parameters

wrap	REPEAT or CLAMP

Returns: this shape part

void shapes3d._ShapePart.visible ( boolean visible )

Sets the visibility of this shape part

Parameters

visible the visible to set

The documentation for this class was generated from the following file:

/Users/peter/git/shapes3d-repos/Shapes 3D/src/shapes3d/_ShapePart.java
